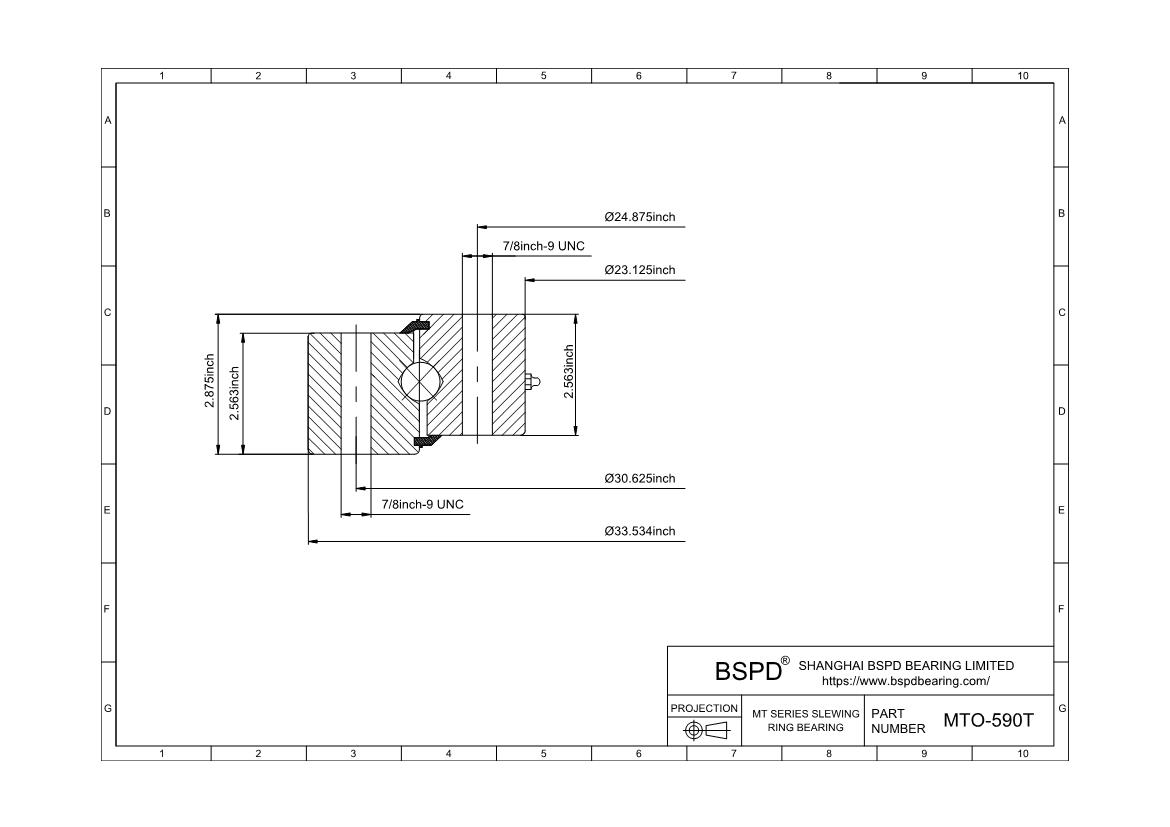

MTO-590T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 23.125"； Outer Diameter: 33.534"； Width (Thickness): 2.875";
Product Attributes
| Specifications | |
| Part Number | MTO-590T |
| Moment Load Rating (Crm) | 338000ft-lbs | 1508.929KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 33.534" | 851.76mm |
| Inside Diameter of Inner Ring (di) | 23.125" | 587.38mm |
| Height of Overall Bearing Assembly (H) | 2.875" | 73.03mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.563" | 65.1mm |
| Approximate Weight (lbs) | 305lbs | 138.345KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 30.625" | 777.88mm |
| Number Holes in Outer Ring (no) | 18 |
| Size of Hole in Outer Ring (Bo) | 0.938" |
| Bolt Circle in Inner Ring (Li) | 24.875" | 631.83mm |
| Number Holes in Inner Ring (ni) | 24 |
| Size of Hole in Inner Ring (Bi) | 0.938" |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Tooth form | - |
| Pitch diameter of gear(D2) | - |
| Diametral pitch(Pd) | - |
| Number of gear teeth(z2) | - |
| Face width of gear teethαb2) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTO-590T ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
