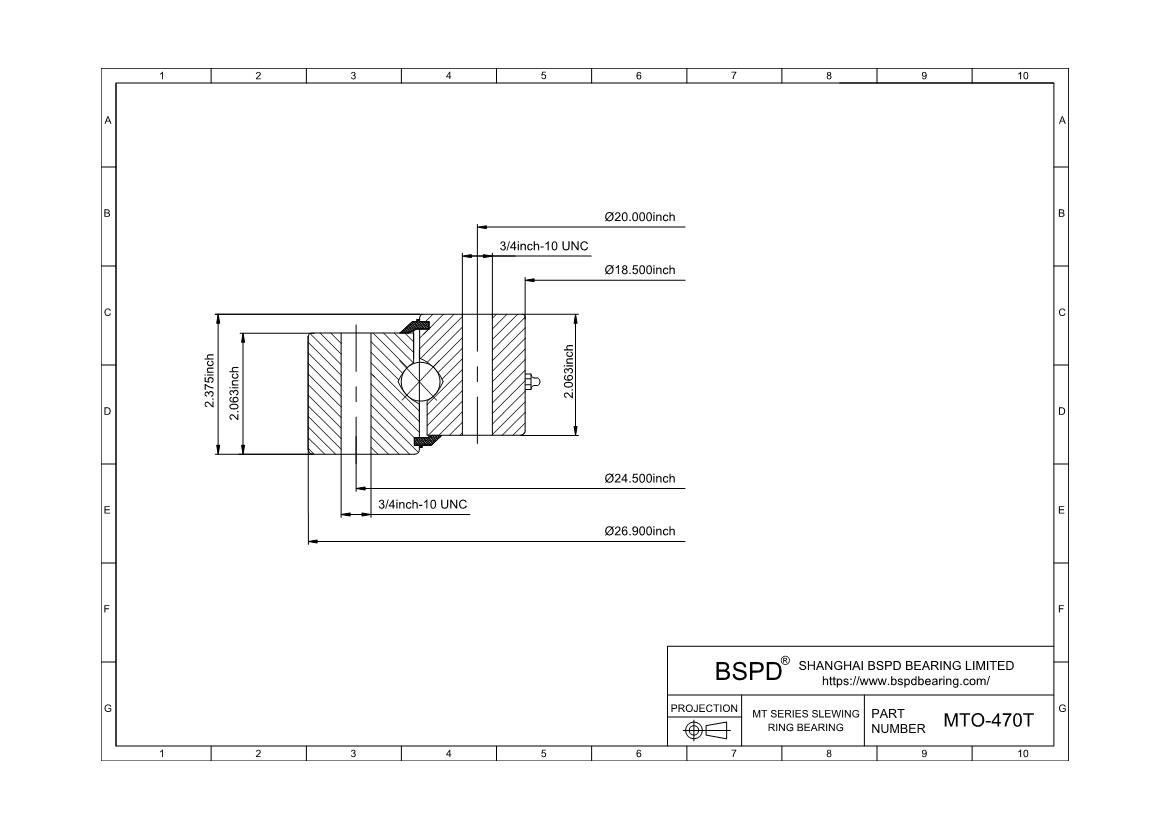

MTO-470T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 18.5"； Outer Diameter: 26.9"； Width (Thickness): 2.375";
Slewing Bearings of similar size
Product Attributes
| Specifications | |
| Part Number | MTO-470T |
| Moment Load Rating (Crm) | 188,000ft-lbs | 839.286KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 26.900" | 683.26mm |
| Inside Diameter of Inner Ring (di) | 18.500" | 469.9mm |
| Height of Overall Bearing Assembly (H) | 2.375" | 60.33mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.063" | 52.4mm |
| Approximate Weight (lbs) | 155lbs | 70.306KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 24.500" | 622.3mm |
| Number Holes in Outer Ring (no) | 18 |
| Size of Hole in Outer Ring (Bo) | 3/4-10 UNC |
| Bolt Circle in Inner Ring (Li) | 20.000" | 508mm |
| Number Holes in Inner Ring (ni) | 24 |
| Size of Hole in Inner Ring (Bi) | 3/4-10 UNC |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Tooth form | - |
| Pitch diameter of gear(D2) | - |
| Diametral pitch(Pd) | - |
| Number of gear teeth(z2) | - |
| Face width of gear teethαb2) | - |
