MTO-065T
Kaydon Slewing Bearings

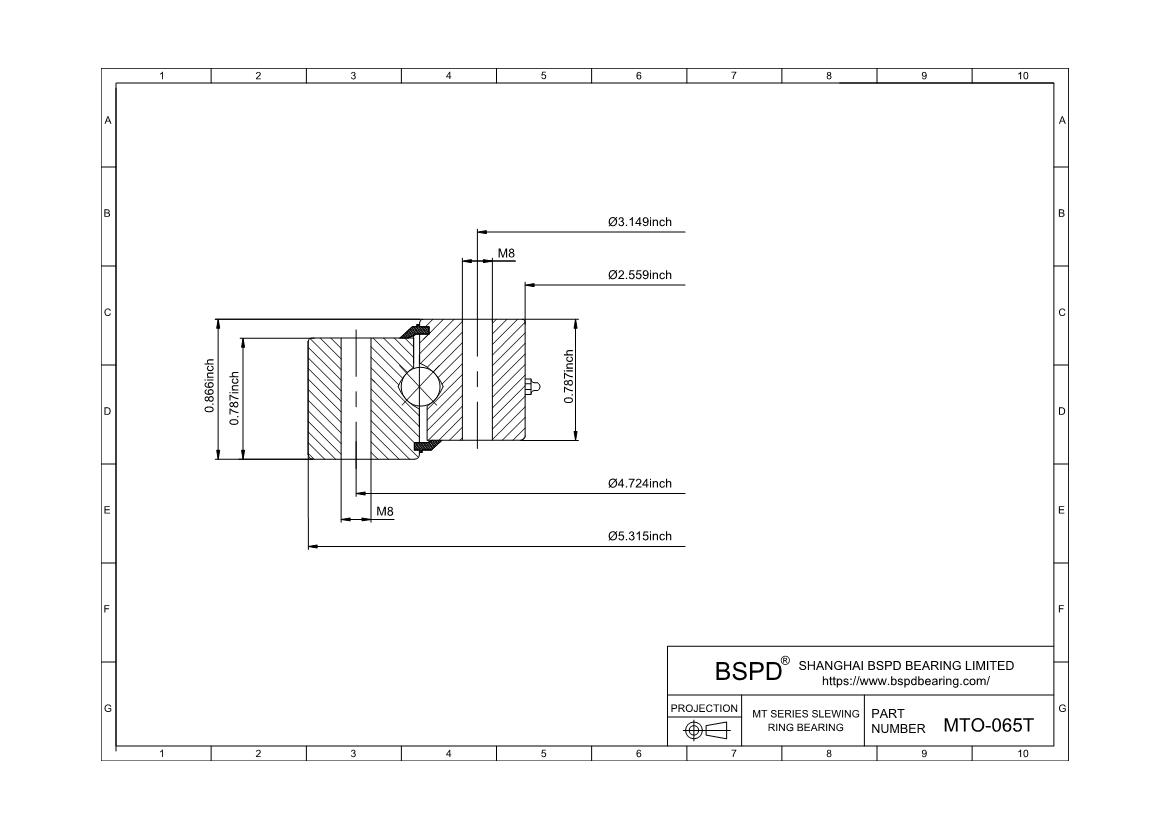

Dimensions: Bore (Inner) Diameter: 2.559"； Outer Diameter: 5.315"； Width (Thickness): 0.866";
Product Attributes
| Specifications | |
| Part Number | MTO-065T |
| Moment Load Rating (Crm) | 1,075ft-lbs | 4.799KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 5.315" | 135mm |
| Inside Diameter of Inner Ring (di) | 2.559" | 65mm |
| Height of Overall Bearing Assembly (H) | 0.866" | 22mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 0.787" | 19.99mm |
| Approximate Weight (lbs) | 4lbs | 1.814KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 4.724" | 119.99mm |
| Number Holes in Outer Ring (no) | 8 |
| Size of Hole in Outer Ring (Bo) | M8 |
| Bolt Circle in Inner Ring (Li) | 3.149" | 79.98mm |
| Number Holes in Inner Ring (ni) | 8 |
| Size of Hole in Inner Ring (Bi) | M8 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Tooth form | - |
| Pitch diameter of gear(D2) | - |
| Diametral pitch(Pd) | - |
| Number of gear teeth(z2) | - |
| Face width of gear teethαb2) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTO-065T ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
