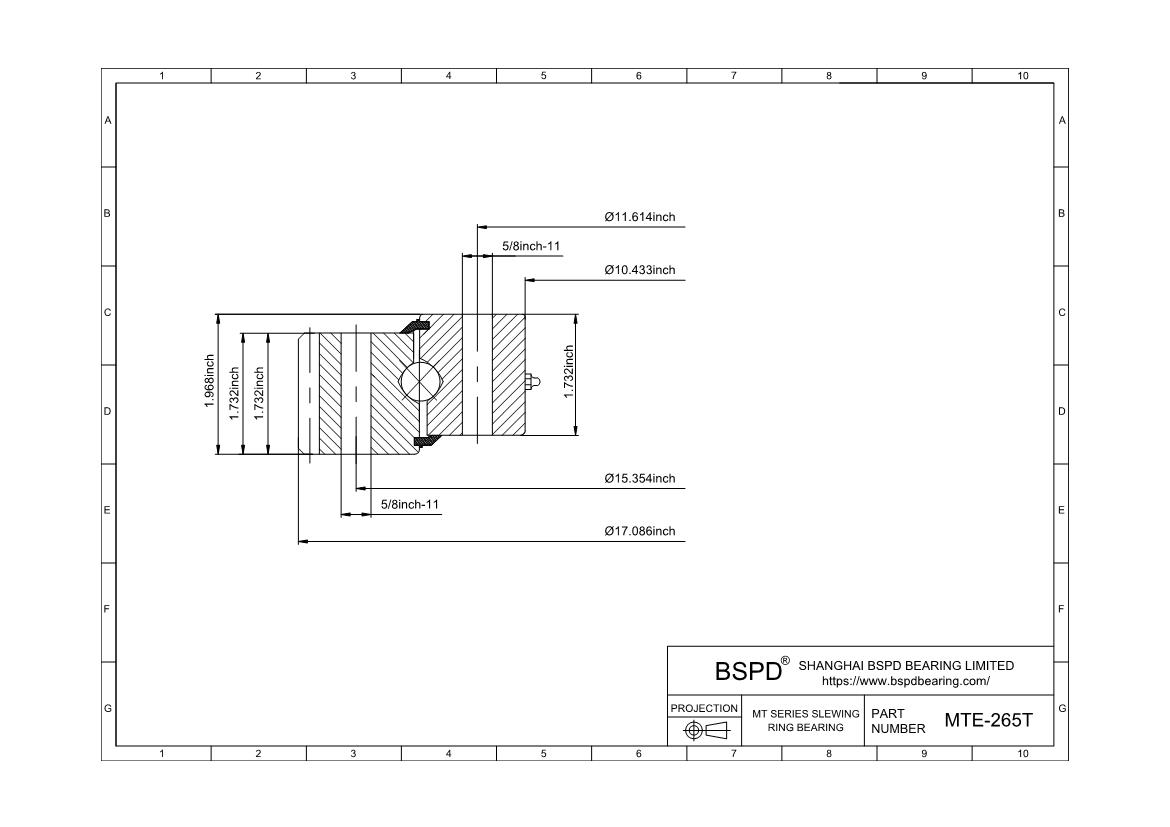

MTE-265T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 10.433"； Outer Diameter: 17.086"； Width (Thickness): 1.968";
Slewing Bearings of similar size
Product Attributes
| Specifications | |
| Part Number | MTE-265T |
| Moment Load Rating (Crm) | 62000ft-lbs | 276.786KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 17.086" | 433.98mm |
| Inside Diameter of Inner Ring (di) | 10.433" | 265mm |
| Height of Overall Bearing Assembly (H) | 1.968" | 49.99mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 1.732" | 43.99mm |
| Approximate Weight (lbs) | 57lbs | 25.855KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 15.354" | 389.99mm |
| Number Holes in Outer Ring (no) | 18 |
| Size of Hole in Outer Ring (Bo) | 5/8-11 |
| Bolt Circle in Inner Ring (Li) | 11.614" | 295mm |
| Number Holes in Inner Ring (ni) | 24 |
| Size of Hole in Inner Ring (Bi) | 5/8-11 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | FS |
| Pitch diameter of gear(D2) | 16.8" | 426.72mm |
| Diametral pitch(Pd) | 5/7 |
| Number of gear teeth(z2) | 84 |
| Face width of gear teethαb2) | 1.732" |
| Mating Pinions | 39201001 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTE-265T ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
