M6-35P1Z
Inch Size Slewing Rings

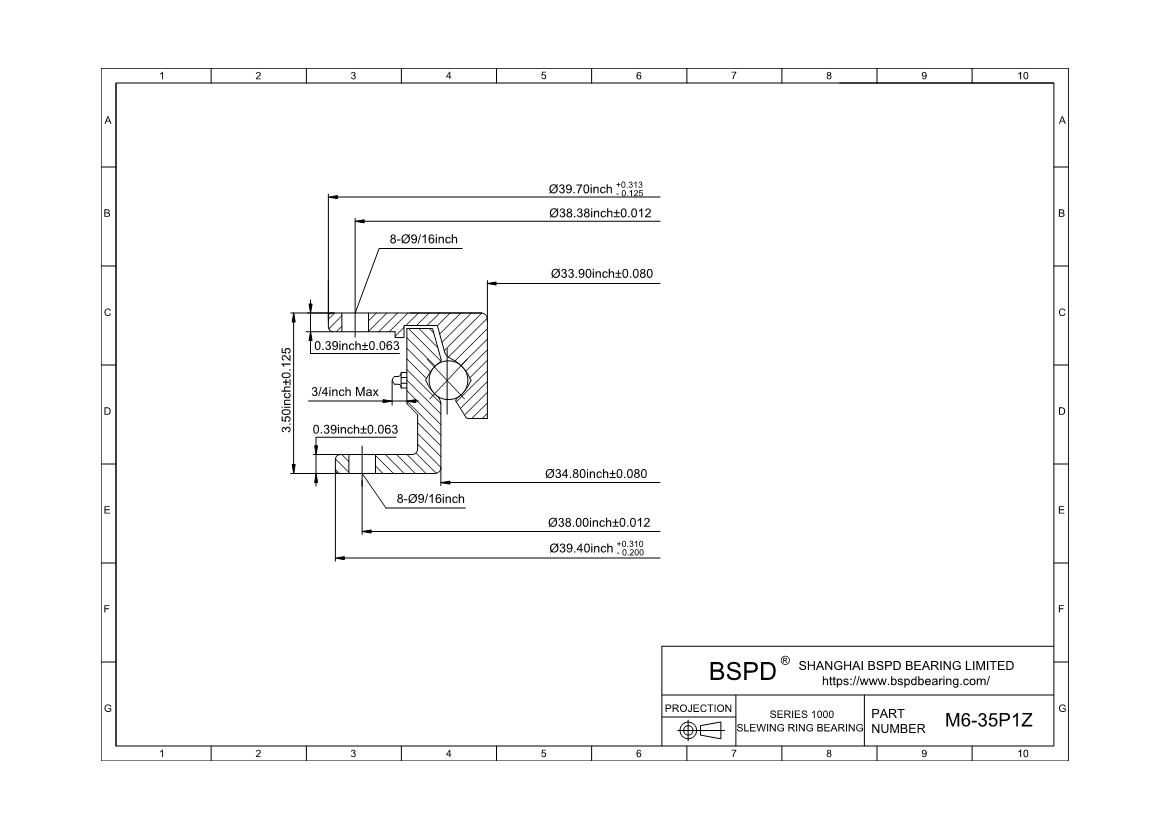

Dimensions: Bore (Inner) Diameter: 33.9"； Outer Diameter: 39.7"； Width (Thickness): 3.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M6-35P1Z |
| Thrust Fifht Wheel | 22000 |
| Weight(lbs) | 145 |
| Outline Dimensions(inches) | |
| OD | 39.7 |
| ID | 33.9 |
| IO | 39.4 |
| OI | 34.8 |
| HT | 3.5 |
| A | 0.39 |
| Mounting Holes | |
| OBC | 38.38 |
| IBC | 38 |
| DIA | 9/16 |
| Holes Per Race | 8 |
Print PDF
Request a 3D CAD Model
