M5-30P1Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 26.2"； Outer Diameter: 33.5"； Width (Thickness): 1.9";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M5-30P1Z |
| Thrust Fifht Wheel | 7700 |
| Weight(lbs) | 70 |

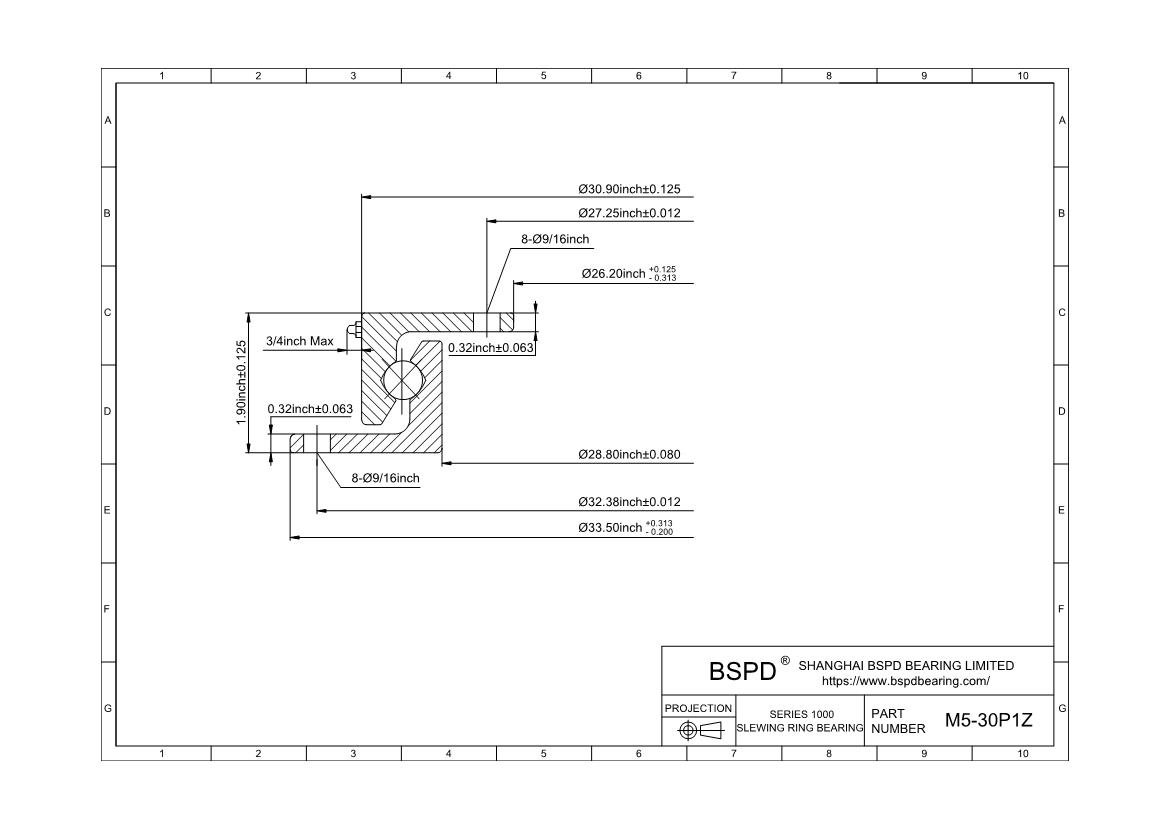

| Outline Dimensions(inches) | |
| OD | 33.5 |
| ID | 26.2 |
| IO | 30.9 |
| OI | 28.8 |
| HT | 1.9 |
| A | 0.32 |
| Mounting Holes | |
| OBC | 32.38 |
| IBC | 27.25 |
| DIA | 9/16 |
| Holes Per Race | 8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M5-30P1Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
