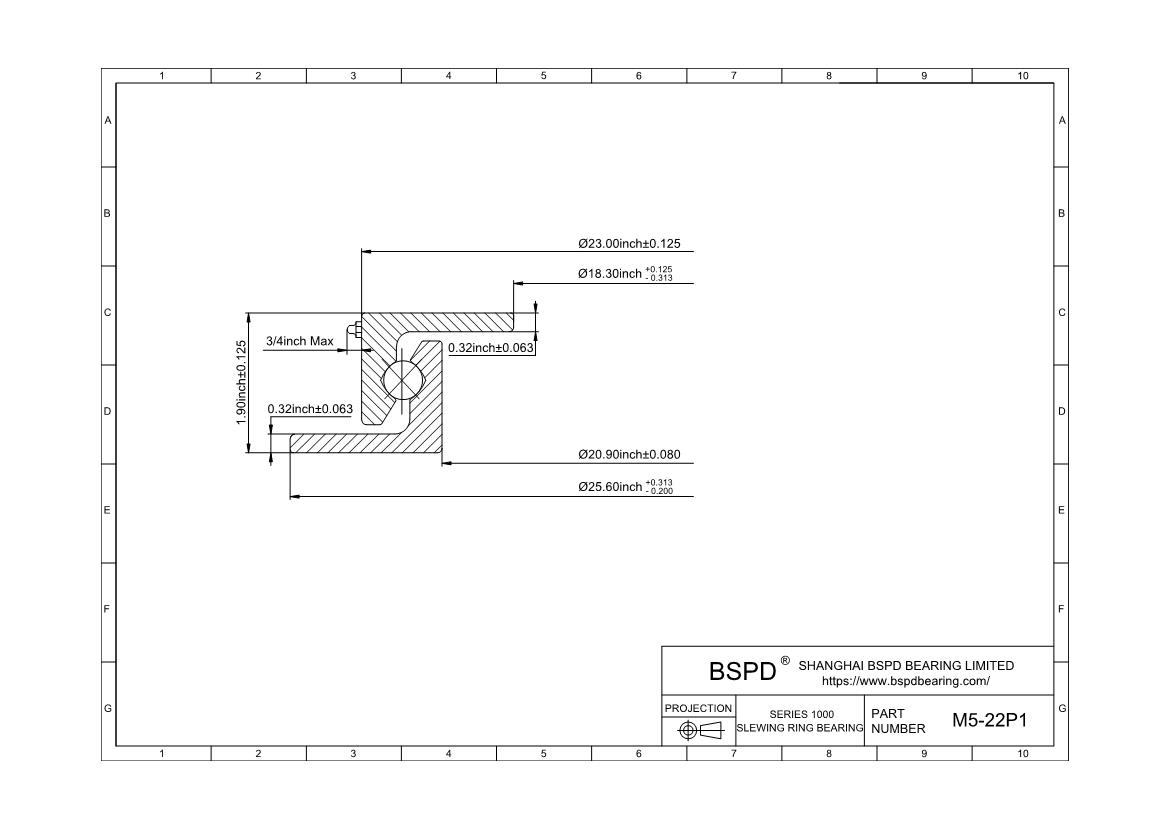

M5-22P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 18.3"； Outer Diameter: 25.6"； Width (Thickness): 1.9";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M5-22P1 |
| Thrust Fifht Wheel | 5500 |
| Weight(lbs) | 50 |
| Outline Dimensions(inches) | |
| OD | 25.6 |
| ID | 18.3 |
| IO | 23 |
| OI | 20.9 |
| HT | 1.9 |
| A | 0.32 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M5-22P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
