M4-26P4
Inch Size Slewing Rings

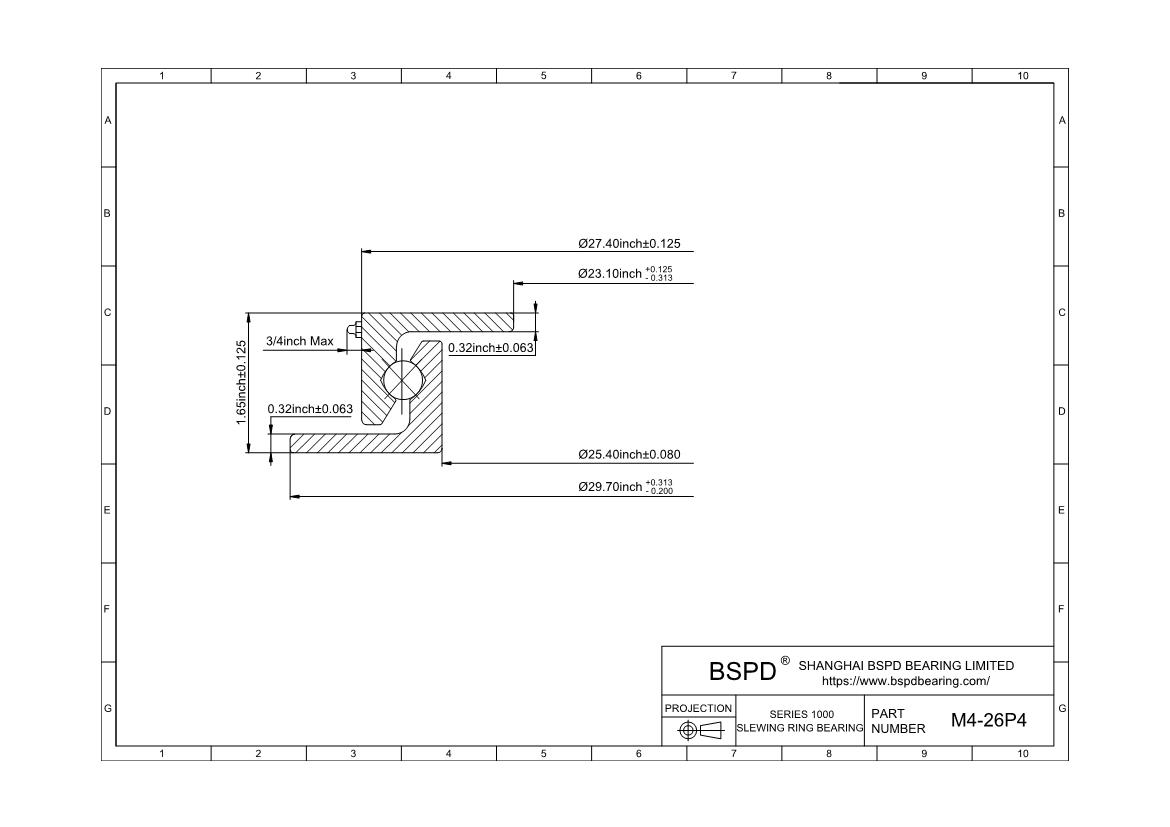

Dimensions: Bore (Inner) Diameter: 23.1"； Outer Diameter: 29.7"； Width (Thickness): 1.65";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M4-26P4 |
| Thrust Fifht Wheel | 3960 |
| Weight(lbs) | 51 |
| Outline Dimensions(inches) | |
| OD | 29.7 |
| ID | 23.1 |
| IO | 27.4 |
| OI | 25.4 |
| HT | 1.65 |
| A | 0.32 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M4-26P4 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
