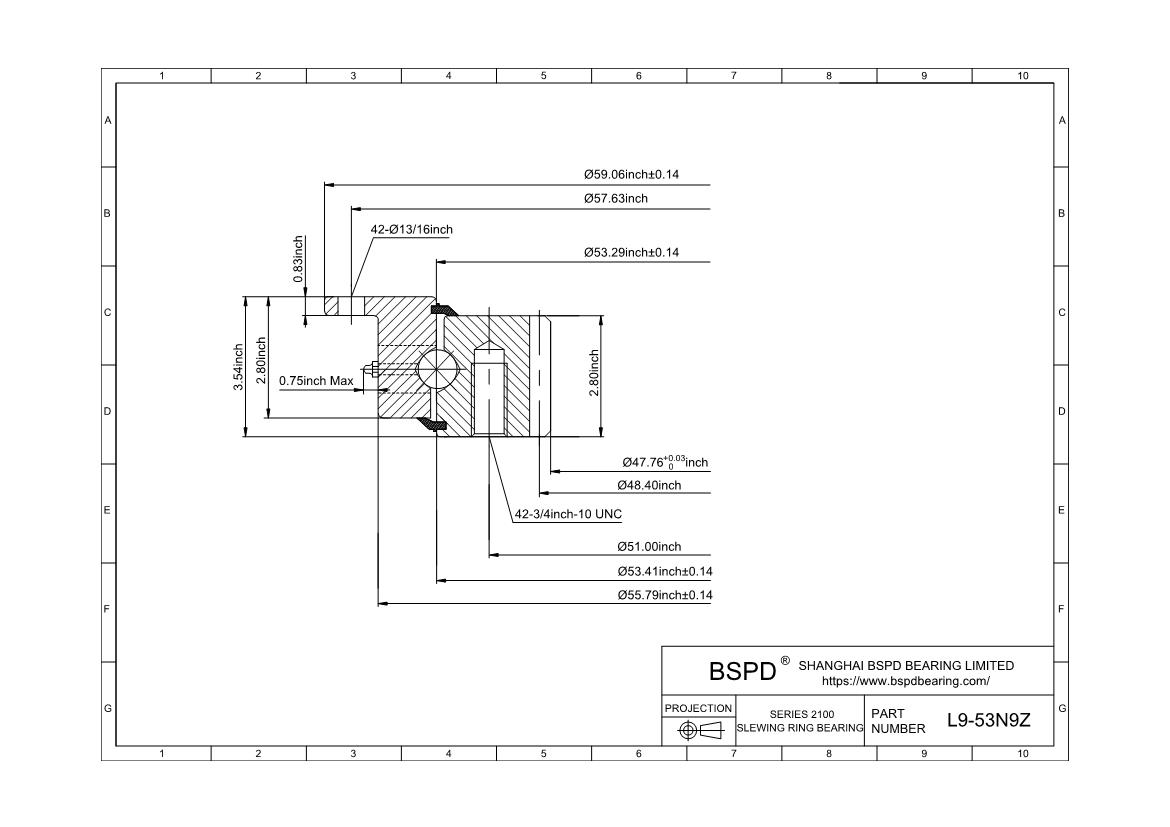

L9-53N9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 47.76"； Outer Diameter: 59.06"； Width (Thickness): 3.54";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L9-53N9Z |
| Weight(lbs) | 505 |
| Outline Dimensions(inches) | |
| OD | 59.06 |
| ID | 47.76 |
| IO | 53.41 |
| OI | 53.29 |
| IE | - |
| OE | 55.79 |
| Mounting Holes | |
| OBC | 57.63 |
| NO.Holes OBC | 42 |
| IBC | 51 |
| NO.Holes IBC | 42 |
| Gear Data | |
| PD | 48.4 |
| DP20 Stub | 2.5 |
| NO of Teeth | 121 |
| Max.Tangential Toothload | 15400 |
| Mating Pinions | P2.5-5.6D2 P2.5-6.8D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L9-53N9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
