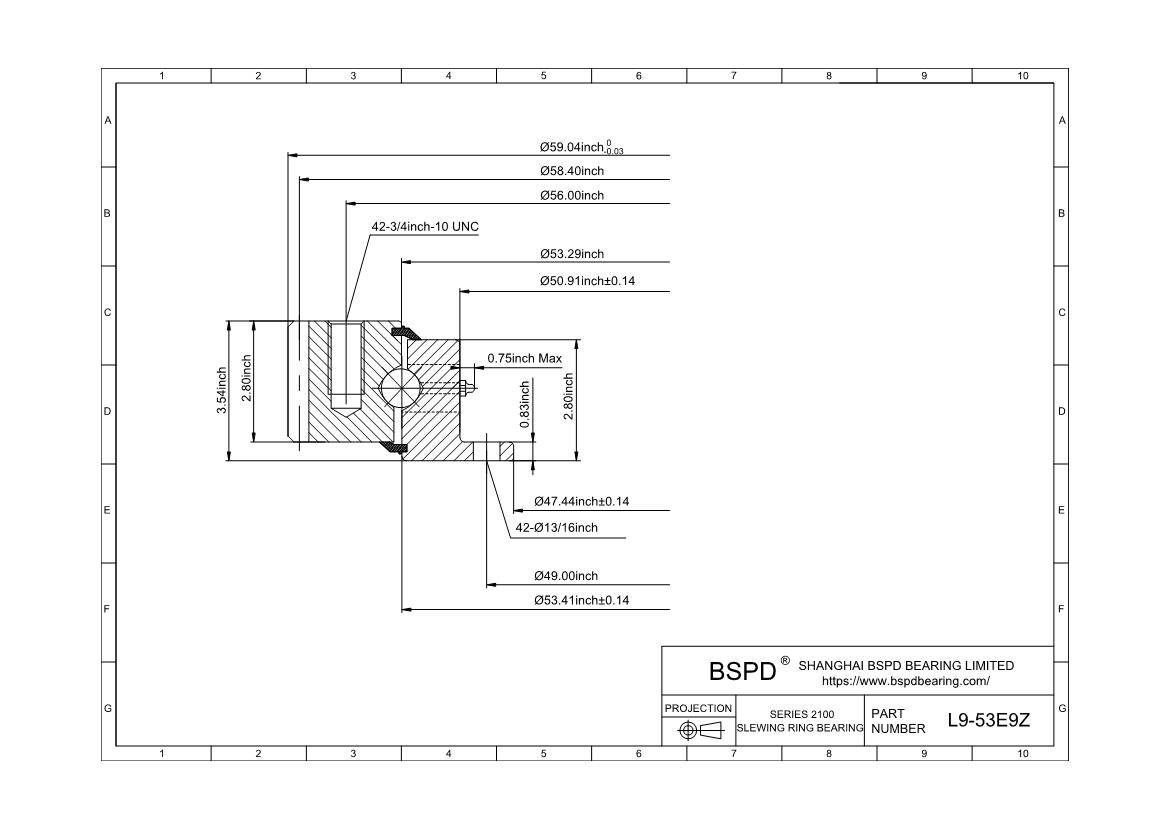

L9-53E9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 47.44"； Outer Diameter: 59.04"； Width (Thickness): 3.54";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L9-53E9Z |
| Weight(lbs) | 529 |
| Outline Dimensions(inches) | |
| OD | 59.04 |
| ID | 47.44 |
| IO | 53.41 |
| OI | 53.29 |
| IE | 50.91 |
| OE | - |
| Mounting Holes | |
| OBC | 56 |
| NO.Holes OBC | 42 |
| IBC | 49 |
| NO.Holes IBC | 42 |
| Gear Data | |
| PD | 58.4 |
| DP20 Stub | 2.5 |
| NO of Teeth | 146 |
| Max.Tangential Toothload | 14980 |
| Mating Pinions | P2.5-5.6D2 P2.5-6.8D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L9-53E9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
