L9-49P9Z
Inch Size Slewing Rings

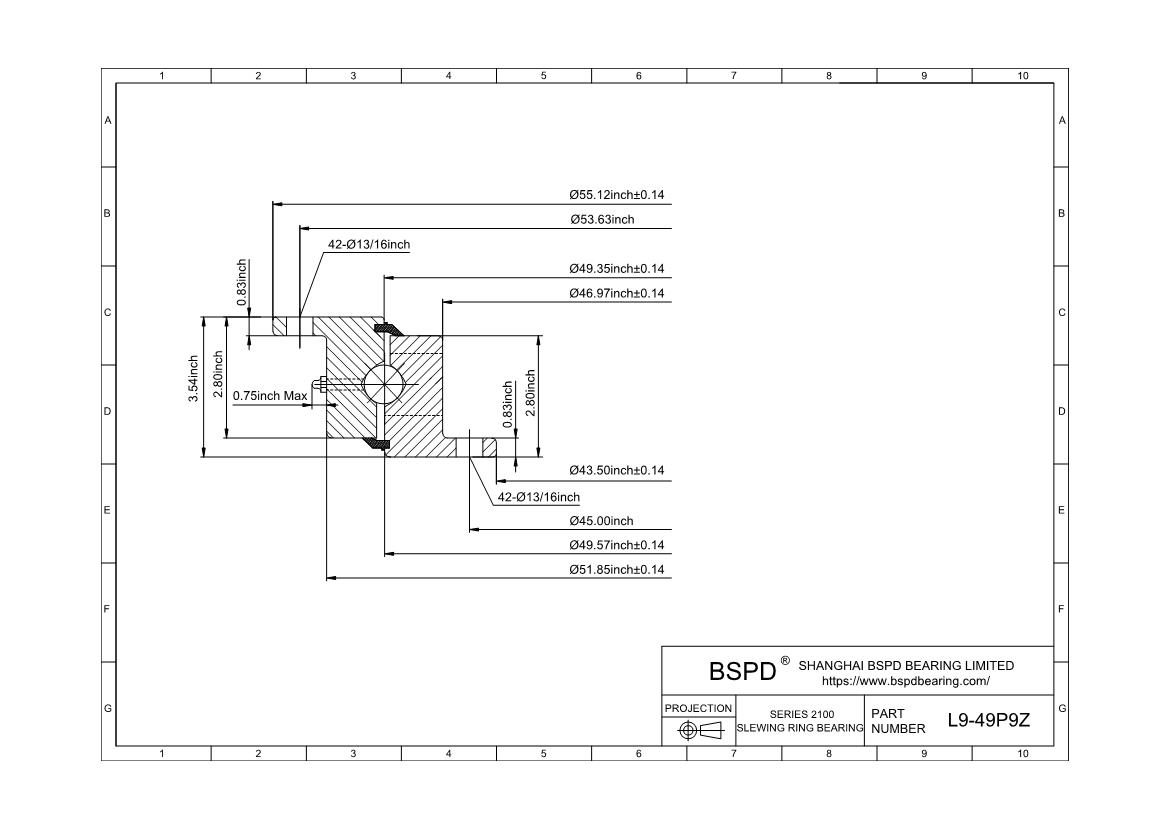

Dimensions: Bore (Inner) Diameter: 43.5"； Outer Diameter: 55.12"； Width (Thickness): 3.54";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L9-49P9Z |
| Weight(lbs) | 380 |
| Outline Dimensions(inches) | |
| OD | 55.12 |
| ID | 43.5 |
| IO | 49.57 |
| OI | 49.35 |
| IE | 46.97 |
| OE | 51.85 |
| Mounting Holes | |
| OBC | 53.63 |
| NO.Holes OBC | 42 |
| IBC | 45 |
| NO.Holes IBC | 42 |
| Gear Data | |
| PD | |
| DP20 Stub | |
| NO of Teeth | |
| Max.Tangential Toothload | |
| Mating Pinions | P2.5-5.6D2 P2.5-6.8D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L9-49P9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
