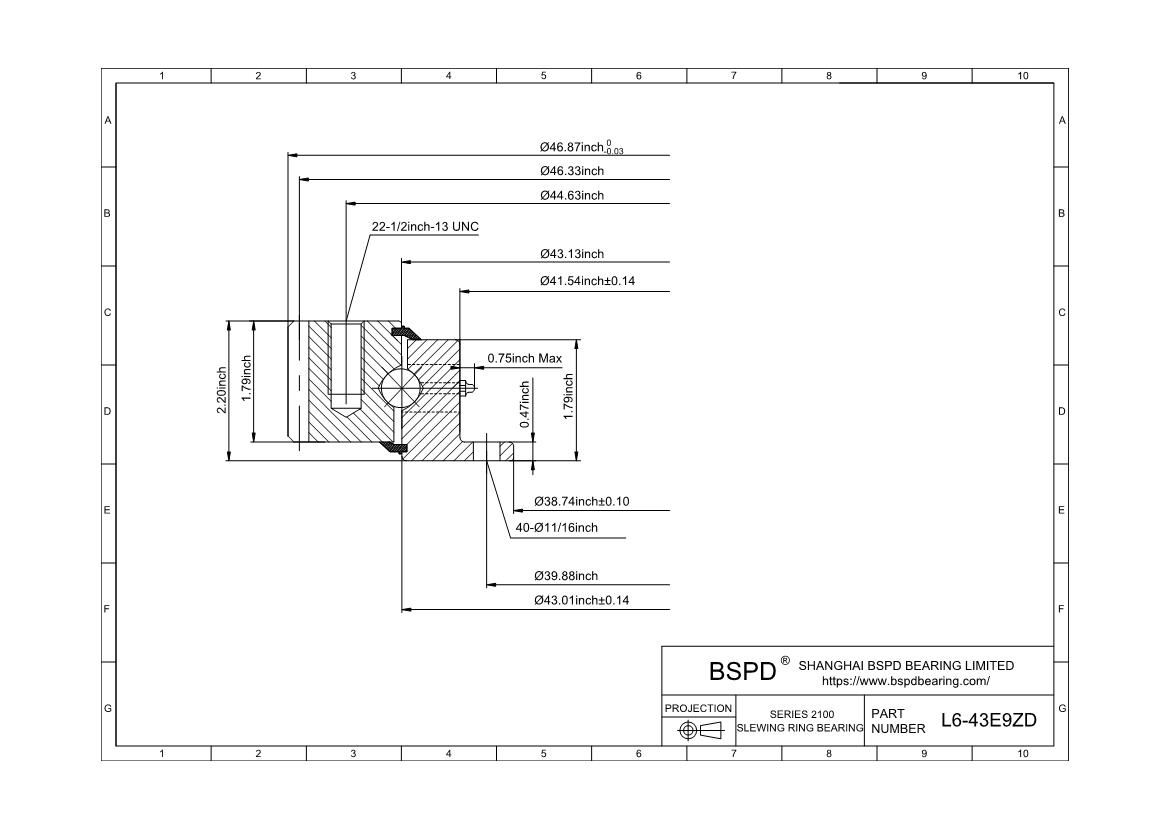

L6-43E9ZD
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 38.74"； Outer Diameter: 46.87"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-43E9ZD |
| Weight(lbs) | 170 |
| Outline Dimensions(inches) | |
| OD | 46.87 |
| ID | 38.74 |
| IO | 43.01 |
| OI | 43.13 |
| IE | 41.54 |
| OE | - |
| Mounting Holes | |
| OBC | 44.63 |
| NO.Holes OBC | 22 |
| IBC | 39.88 |
| NO.Holes IBC | 40 |
| Gear Data | |
| PD | 46.33 |
| DP20 Stub | 3 |
| NO of Teeth | 139 |
| Max.Tangential Toothload | 7952 |
| Mating Pinions | P3-4.67D2 P3-5.67D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-43E9ZD ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
