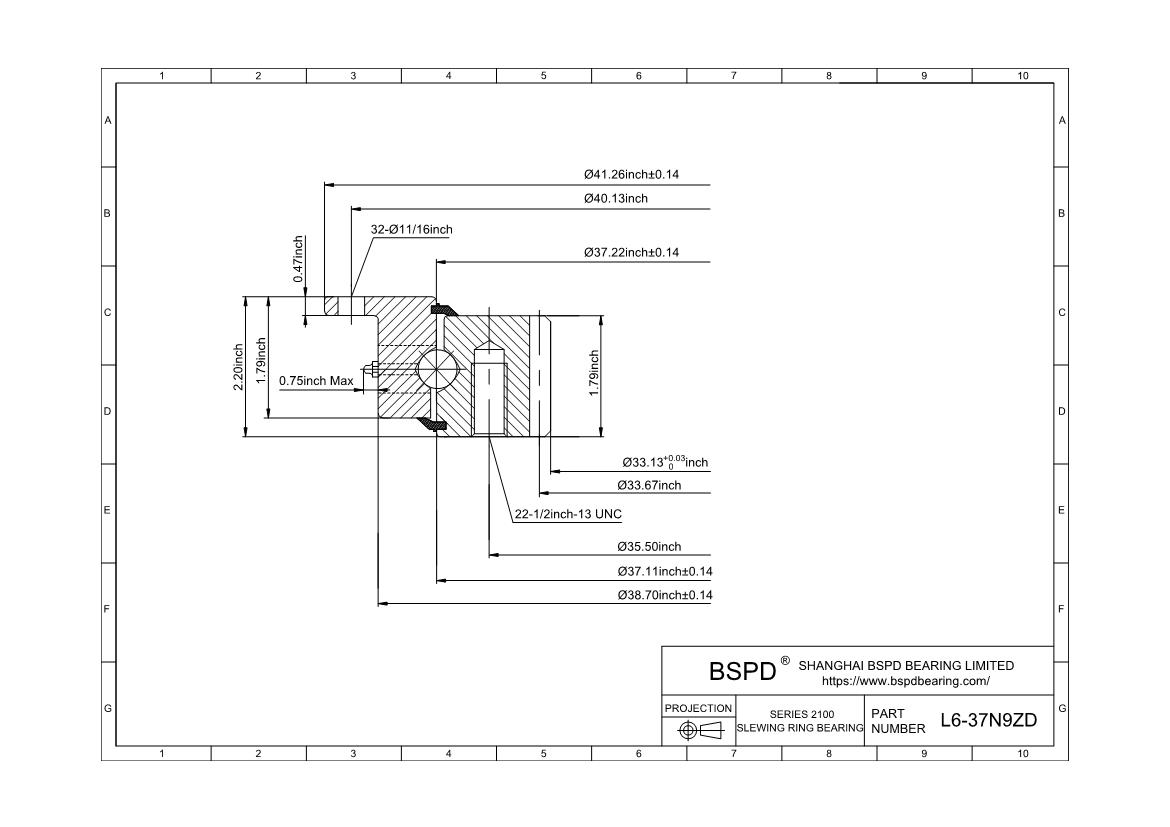

L6-37N9ZD
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 33.13"； Outer Diameter: 41.26"； Width (Thickness): 2.2";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-37N9ZD |
| Weight(lbs) | 144 |
| Outline Dimensions(inches) | |
| OD | 41.26 |
| ID | 33.13 |
| IO | 37.11 |
| OI | 37.22 |
| IE | - |
| OE | 38.7 |
| Mounting Holes | |
| OBC | 40.13 |
| NO.Holes OBC | 32 |
| IBC | 35.5 |
| NO.Holes IBC | 22 |
| Gear Data | |
| PD | 33.67 |
| DP20 Stub | 3 |
| NO of Teeth | 101 |
| Max.Tangential Toothload | 8120 |
| Mating Pinions | P3-4.67D2 P3-5.67D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-37N9ZD ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
