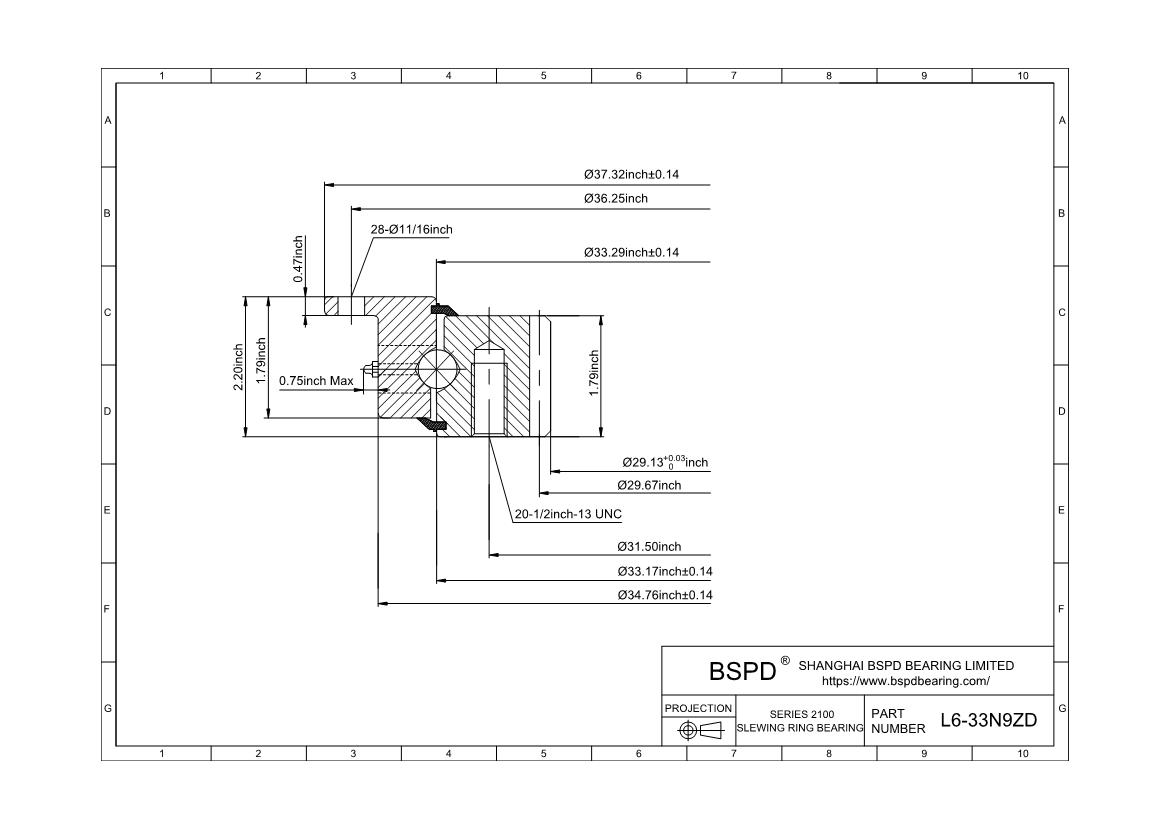

L6-33N9ZD
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 29.13"； Outer Diameter: 37.32"； Width (Thickness): 2.2";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-33N9ZD |
| Weight(lbs) | 133 |
| Outline Dimensions(inches) | |
| OD | 37.32 |
| ID | 29.13 |
| IO | 33.17 |
| OI | 33.29 |
| IE | - |
| OE | 34.76 |
| Mounting Holes | |
| OBC | 36.25 |
| NO.Holes OBC | 28 |
| IBC | 31.5 |
| NO.Holes IBC | 20 |
| Gear Data | |
| PD | 29.67 |
| DP20 Stub | 3 |
| NO of Teeth | 89 |
| Max.Tangential Toothload | 8120 |
| Mating Pinions | P3-4.67D2 P3-5.67D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-33N9ZD ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
