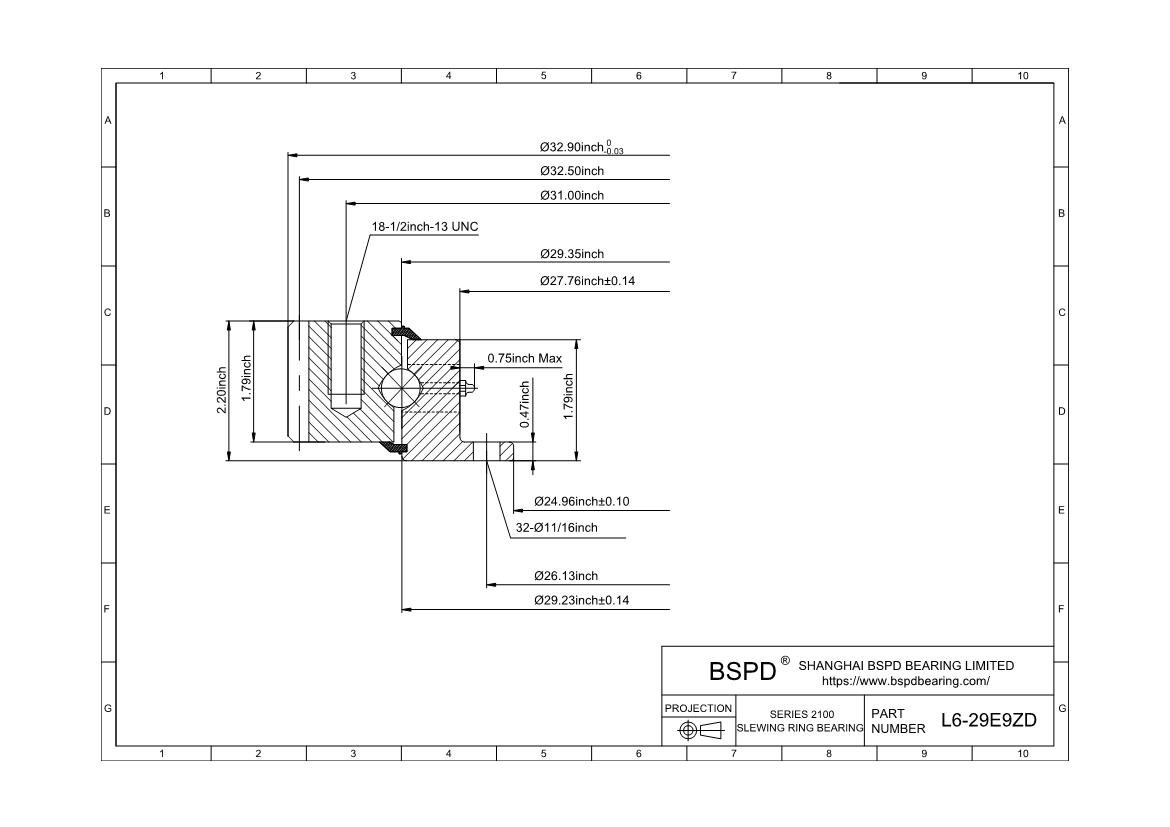

L6-29E9ZD
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 24.96"； Outer Diameter: 32.9"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-29E9ZD |
| Weight(lbs) | 115 |
| Outline Dimensions(inches) | |
| OD | 32.9 |
| ID | 24.96 |
| IO | 29.23 |
| OI | 29.35 |
| IE | 27.76 |
| OE | - |
| Mounting Holes | |
| OBC | 31 |
| NO.Holes OBC | 18 |
| IBC | 26.13 |
| NO.Holes IBC | 32 |
| Gear Data | |
| PD | 32.5 |
| DP20 Stub | 4 |
| NO of Teeth | 130 |
| Max.Tangential Toothload | 5950 |
| Mating Pinions | P4-3.5D2 P4-4.25D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-29E9ZD ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
