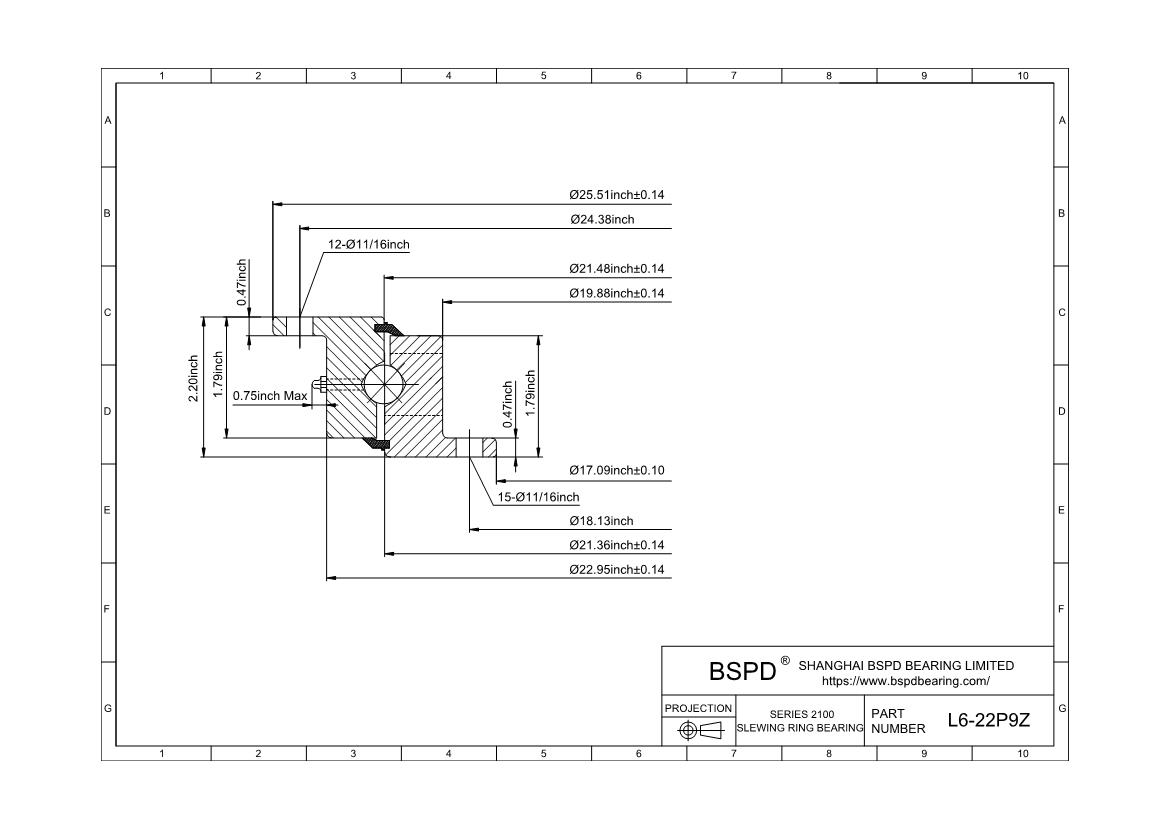

L6-22P9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 17.09"； Outer Diameter: 25.51"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-22P9Z |
| Weight(lbs) | 68 |
| Outline Dimensions(inches) | |
| OD | 25.51 |
| ID | 17.09 |
| IO | 21.36 |
| OI | 21.48 |
| IE | 19.88 |
| OE | 22.95 |
| Mounting Holes | |
| OBC | 24.38 |
| NO.Holes OBC | 12 |
| IBC | 18.13 |
| NO.Holes IBC | 15 |
| Gear Data | |
| PD | |
| DP20 Stub | |
| NO of Teeth | |
| Max.Tangential Toothload | |
| Mating Pinions | P4-3.5D2 P4-4.25D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-22P9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
