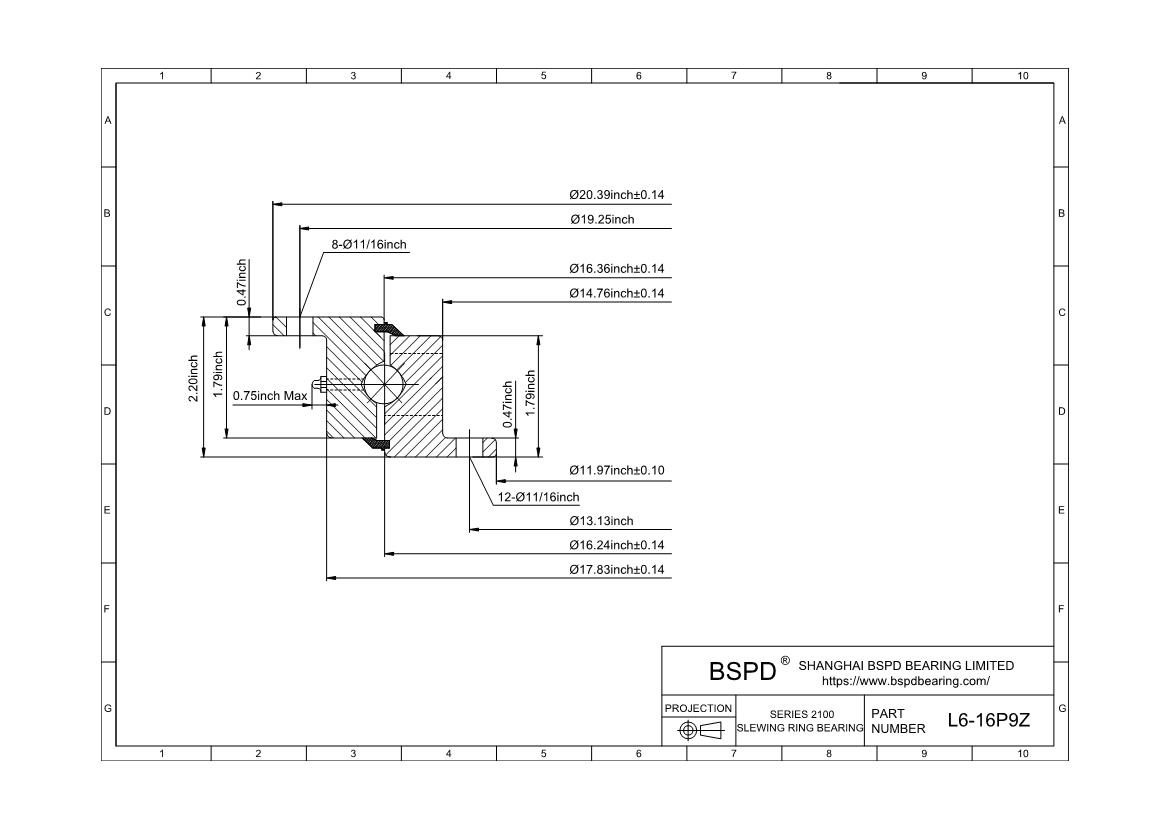

L6-16P9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 11.97"； Outer Diameter: 20.39"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-16P9Z |
| Weight(lbs) | 52 |
| Outline Dimensions(inches) | |
| OD | 20.39 |
| ID | 11.97 |
| IO | 16.24 |
| OI | 16.36 |
| IE | 14.76 |
| OE | 17.83 |
| Mounting Holes | |
| OBC | 19.25 |
| NO.Holes OBC | 8 |
| IBC | 13.13 |
| NO.Holes IBC | 12 |
| Gear Data | |
| PD | |
| DP20 Stub | |
| NO of Teeth | |
| Max.Tangential Toothload | |
| Mating Pinions | P4-3.5D2 P4-4.25D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-16P9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
