KH-325P
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 28.5"； Outer Diameter: 36.7"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | KH-325P |
| Bearing Types | Slewing Ring Bearing |
| Maximum Allowable Gear Tooth Load (Fz) | - |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 36.700" | 932.18mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.050" | ±1.27mm |
| Inside Diameter of Inner Ring (di) | 28.500" | 723.9mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.050" | ±1.27mm |
| Internal Diameter on Outer Ring (Di) | 32.750" | 831.85mm |
| Internal Diameter on Outer Ring (Di) Tolerance | * |
| External Diameter on Inner Ring (do) | 32.250" | 819.15mm |
| External Diameter on Inner Ring (do) Tolerance | * |
| Approximate Weight (G) | 220lbs | 99.79KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 34.500" | 876.3mm |

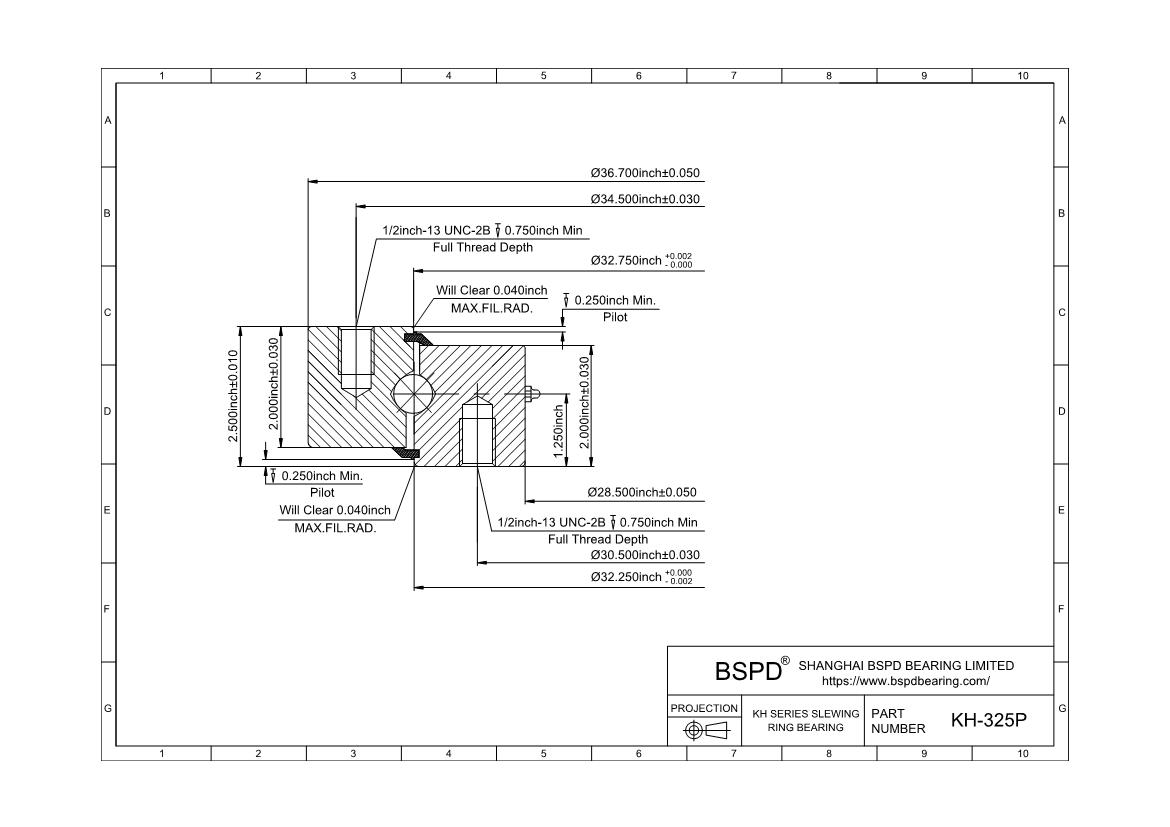

| Size of Hole in Outer Ring | See the picture on the right |
| Number Holes in Outer Ring (no) | 28 |
| Bolt Circle in Inner Ring (Li) | 30.500" | 774.7mm |
| Size of Hole in Inner Ring | See the picture on the right |
| Number Holes in Inner Ring (ni) | 28 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Pitch diameter of gear(D2) | - |
| Face width of gear teeth(b2) | - |
| Number of gear teeth(z2) | - |
| Dynamic Capacity | |
| Axial Dynamic Capacity | 45,000 |
| Moment Dynamic Capacity | 48,100 |
| Intermittent Capacity | |
| Axial Intermittent Capacity | 167,000 |
| Moment Intermittent Capacity | 92,000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
