KH-275E Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 23.5"； Outer Diameter: 31.667"； Width (Thickness): ;

KH-275E
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Specifications
Part Number KH-275E
Bearing Types Slewing Ring Bearing
Maximum Allowable Gear Tooth Load (Fz) 5,700lbs | 25.446KN
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 31.667" | 804.34mm
Outside Diameter of Outer Ring (Do) Tolerance +0/-.020" | 0/-0.51mm
Inside Diameter of Inner Ring (di) 23.500" | 596.9mm
Inside Diameter of Inner Ring (di) Tolerance ±.050" | ±1.27mm
Internal Diameter on Outer Ring (Di) 27.750" | 704.85mm
Internal Diameter on Outer Ring (Di) Tolerance *
External Diameter on Inner Ring (do) 27.250" | 692.15mm
External Diameter on Inner Ring (do) Tolerance *
Approximate Weight (G) 175lbs | 79.378KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 29.500" | 749.3mm

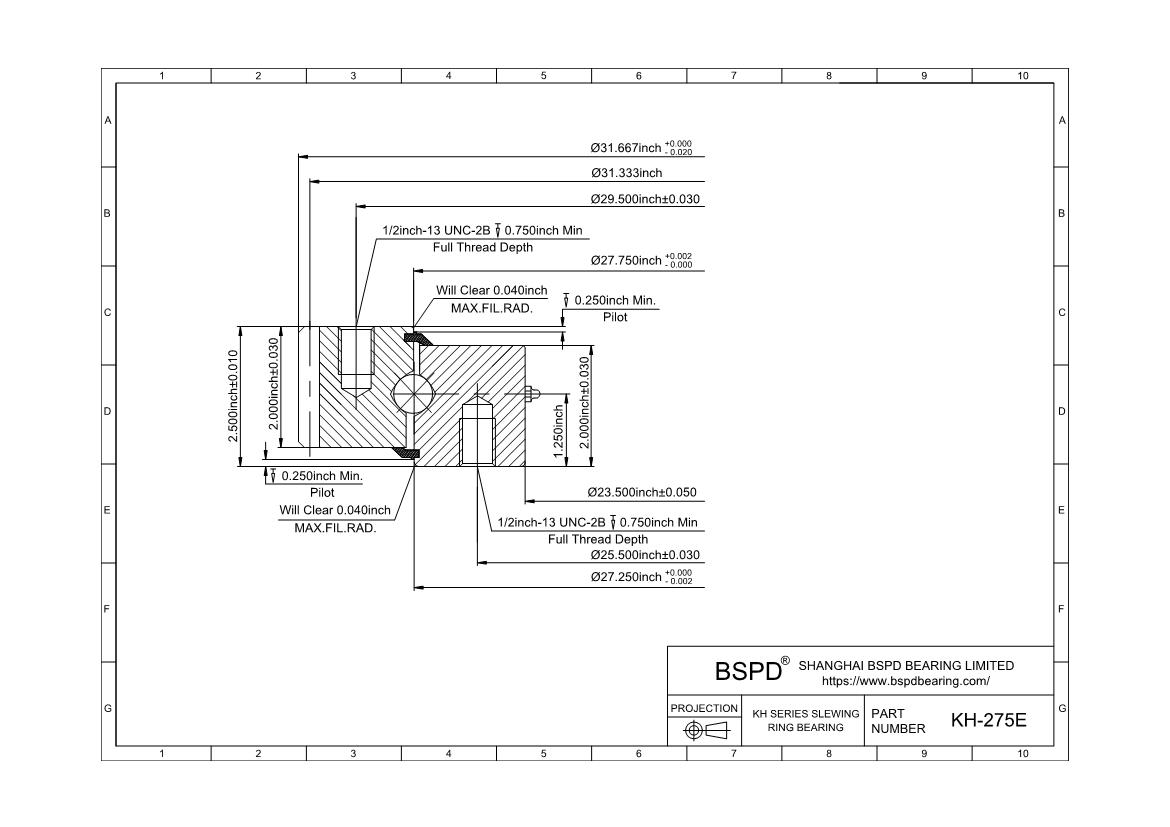

Size of Hole in Outer Ring See the picture on the right
Number Holes in Outer Ring (no) 24
Bolt Circle in Inner Ring (Li) 25.500" | 647.7mm
Size of Hole in Inner Ring See the picture on the right
Number Holes in Inner Ring (ni) 24
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Pitch diameter of gear(D2) 31.333" | 795.86mm
Diametral Pitch (Pd) 6
Number of gear teeth(z2) 188
Dynamic Capacity
Axial Dynamic Capacity 43,000
Moment Dynamic Capacity 39,600
Intermittent Capacity
Axial Intermittent Capacity 142,000
Moment Intermittent Capacity 75,000
