KF400AR0 Inch Size RealiSlim Open Bearings

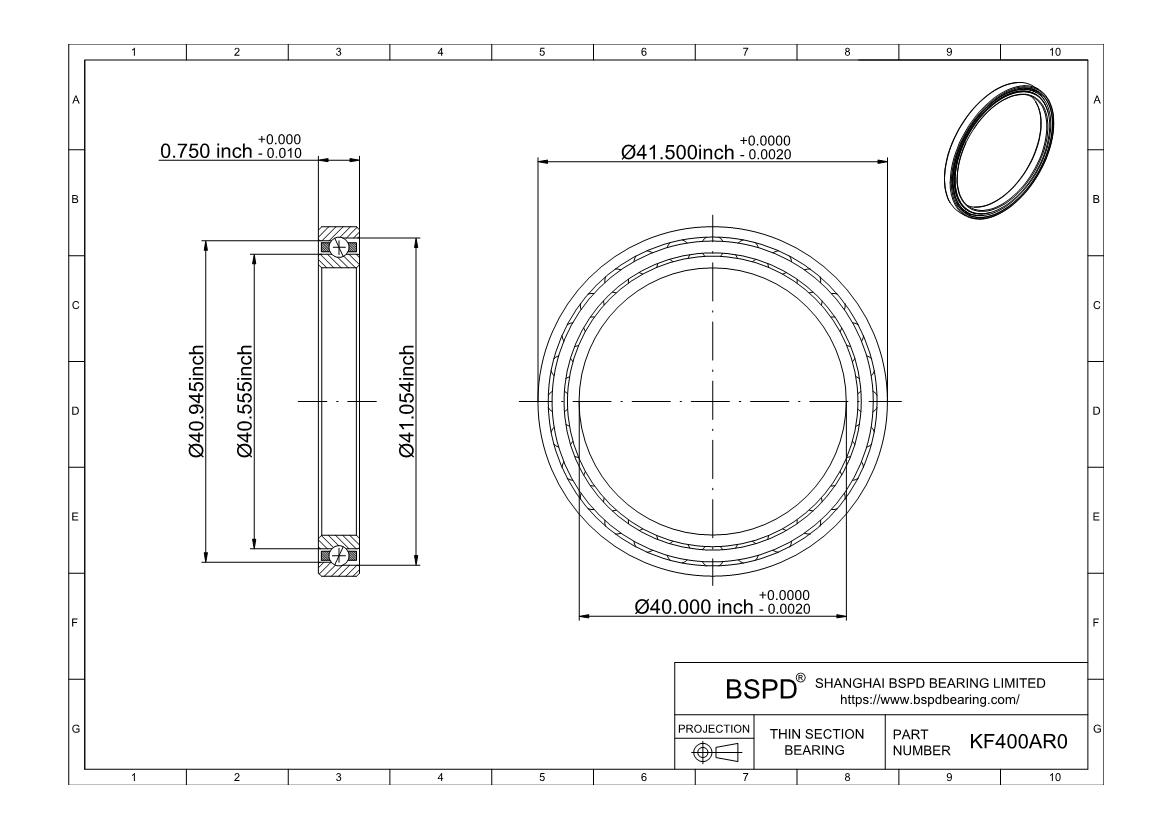

Dimensions: Bore (Inner) Diameter: 40.000"； Outer Diameter: 41.500"； Width (Thickness): 0.75";

KF400AR0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 3/4" x 3/4"
Part Number KF400AR0
For Shaft Diameter 40.000"
Bore Dia (d) 40.000"
Bore Dia Tolerance -0.0020"– 0"
For Housing ID 41.500"
Outer Dia (D) 41.500"
Outer Dia Tolerance -0.0020"– 0"
Width (B) 0.75"
Width Tolerance +.000 –.010"
Land dia.L1 40.555"
Land dia.L2 40.945"
C'Bore dia.L3 41.054"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic(lbs) Radial 12147
Thrust 35580
Static (lbs) Radial 55220
Thrust 159400
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 16.600
KF400AR0
