KF350AR0 Inch Size RealiSlim Open Bearings

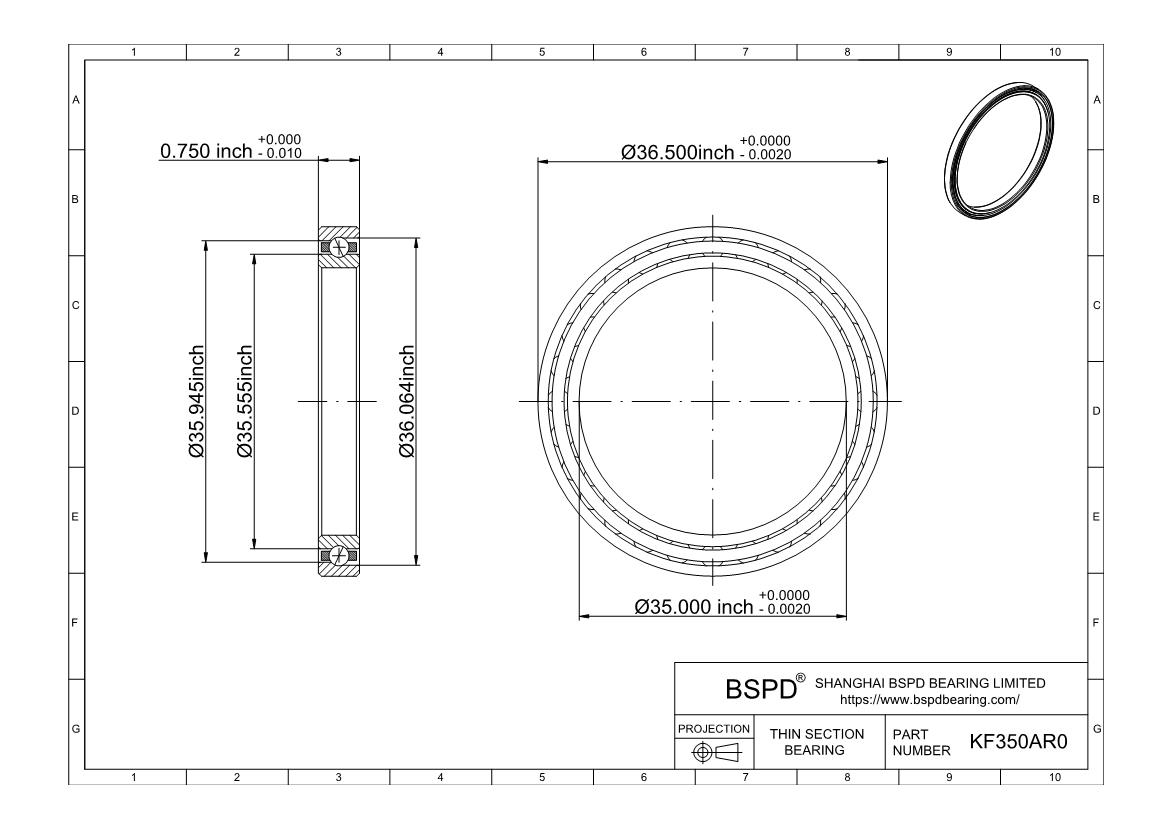

Dimensions: Bore (Inner) Diameter: 35.000"； Outer Diameter: 36.500"； Width (Thickness): 0.75";

KF350AR0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 3/4" x 3/4"
Part Number KF350AR0
For Shaft Diameter 35.000"
Bore Dia (d) 35.000"
Bore Dia Tolerance -0.0020"– 0"
For Housing ID 36.500"
Outer Dia (D) 36.500"
Outer Dia Tolerance -0.0020"– 0"
Width (B) 0.75"
Width Tolerance +.000 –.010"
Land dia.L1 35.555"
Land dia.L2 35.945"
C'Bore dia.L3 36.064"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic(lbs) Radial 11382
Thrust 32580
Static (lbs) Radial 48380
Thrust 139700
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 14.600
KF350AR0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Thin Section Bearings KF350AR0 ? Inch Size RealiSlim Open Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
