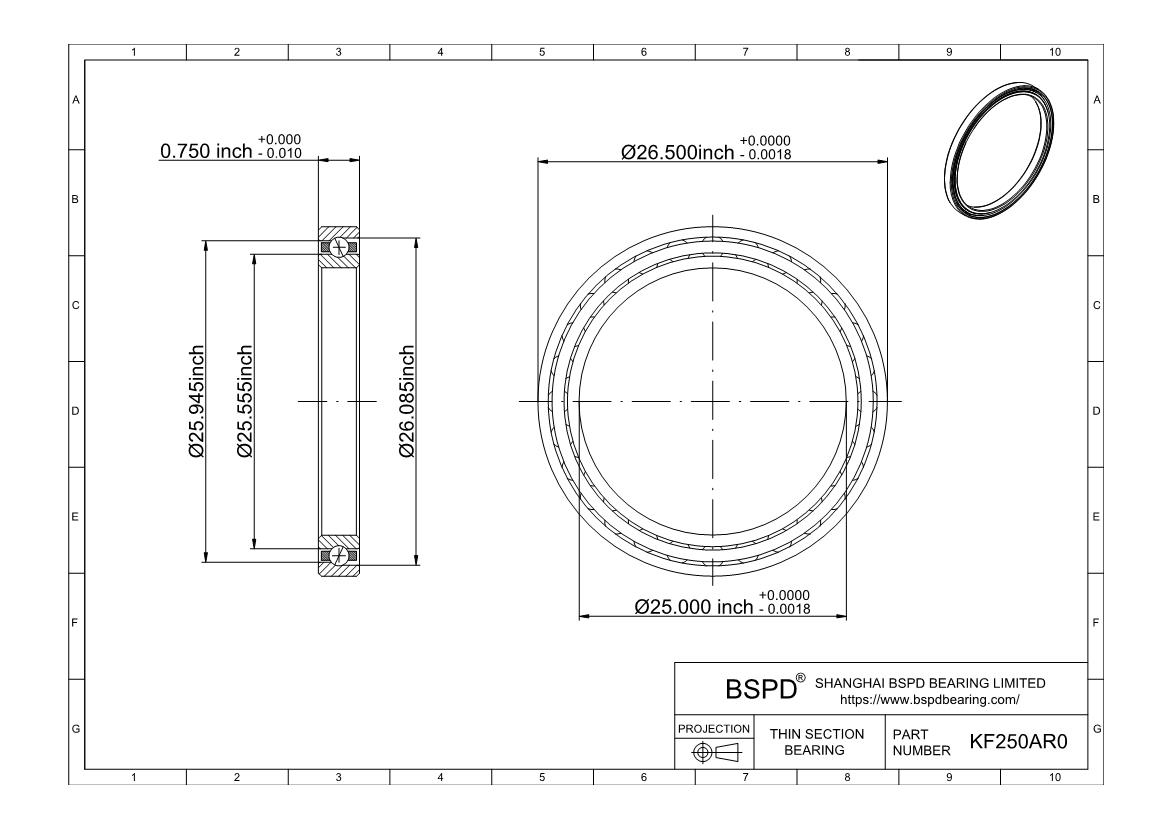

KF250AR0 Inch Size RealiSlim Open Bearings
Dimensions: Bore (Inner) Diameter: 25.000"； Outer Diameter: 26.500"； Width (Thickness): 0.75";

KF250AR0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 3/4" x 3/4"
Part Number KF250AR0
For Shaft Diameter 25.000"
Bore Dia (d) 25.000"
Bore Dia Tolerance -0.0018"– 0"
For Housing ID 26.500"
Outer Dia (D) 26.500"
Outer Dia Tolerance -0.0018"– 0"
Width (B) 0.75"
Width Tolerance +.000 –.010"
Land dia.L1 25.555"
Land dia.L2 25.945"
C'Bore dia.L3 26.085"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic(lbs) Radial 9585
Thrust 26100
Static (lbs) Radial 34700
Thrust 100200
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 10.500
KF250AR0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Thin Section Bearings KF250AR0 ? Inch Size RealiSlim Open Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
