KF140XP0 Inch Size RealiSlim Open Bearings

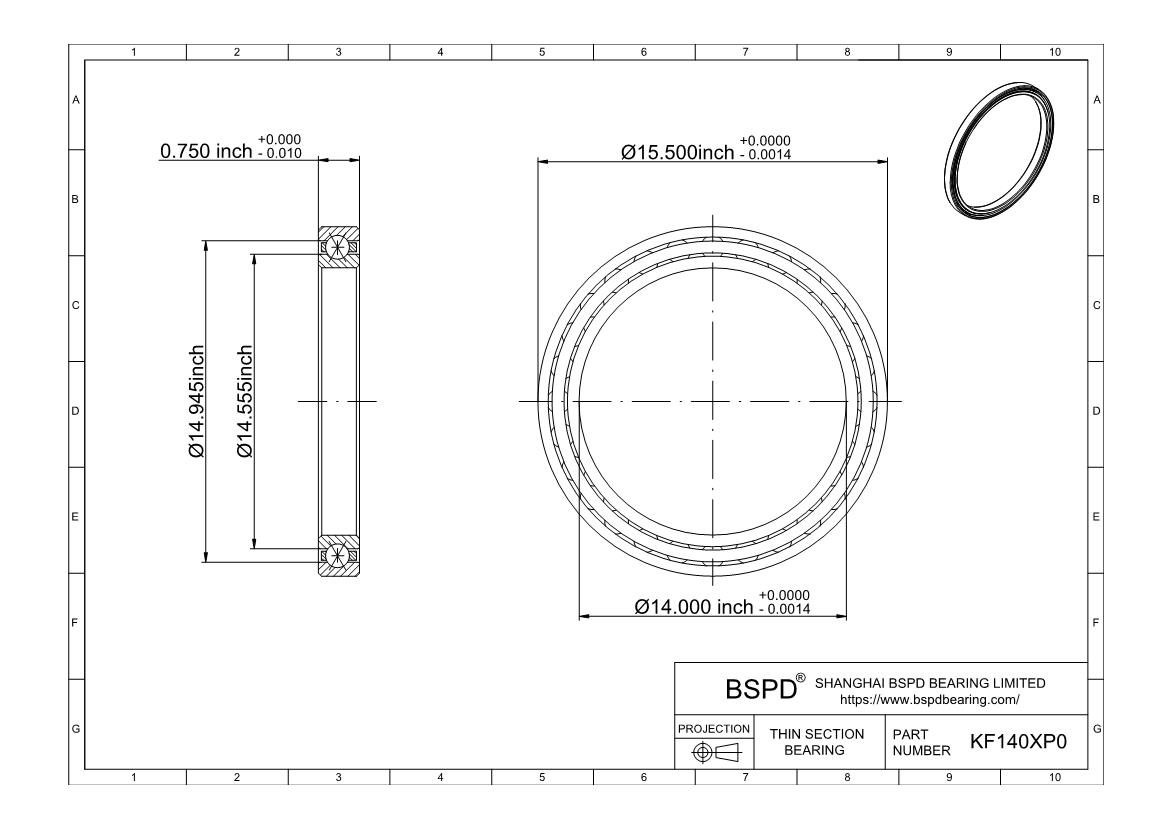

Dimensions: Bore (Inner) Diameter: 14.000"； Outer Diameter: 15.500"； Width (Thickness): 0.75";

REQUEST FOR QUOTE

Product Attributes

Bearing Type		Ball
For Load Direction		Four Point
Construction		Single Row
Seal Type		Open
Cross Section		3/4" x 3/4"
Part Number		KF140XP0
For Shaft Diameter		14.000"
Bore Dia (d)		14.000"
Bore Dia Tolerance		-0.0014"– 0"
For Housing ID		15.500"
Outer Dia (D)		15.500"
Outer Dia Tolerance		-0.0014"– 0"
Width (B)		0.75"
Width Tolerance		+.000 –.010"
Land dia.L1		14.555"
Land dia.L2		14.945"
Ring Material		52100 Chrome steel
Ball Material		52100 Chrome steel
Cage Material		Brass
Dynamic (lbs)	Radial	8,775
	Thrust	14,530
	Moment	48,556
Static (lbs)	Radial	16,650
	Thrust	41,620
	Moment	122,800
Lubrication		Lubricated
Shaft Mount Type		Press Fit
Temperature Range		-30° to 110 °C
ABEC Rating		ABEC-1
Radial Clearance		0.0000 – 0.0005"
RoHS		Compliant
Weight (lbs)		6

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
