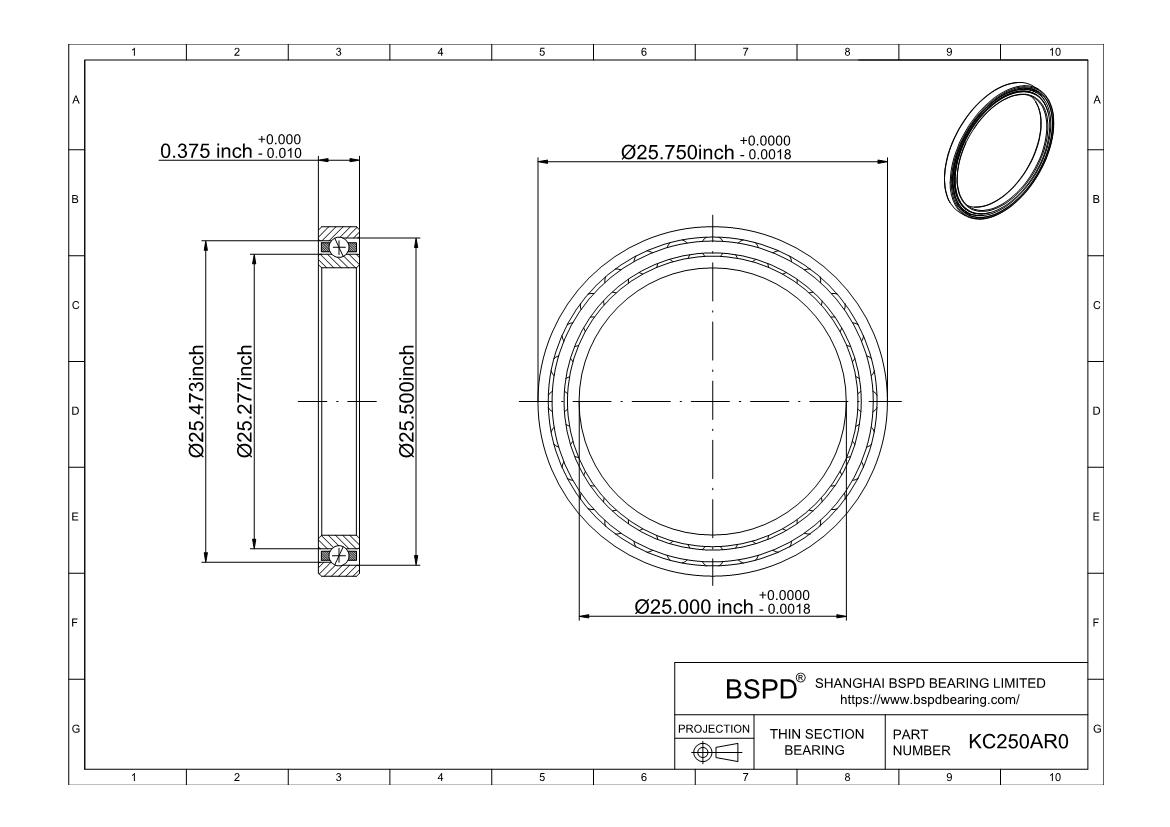

KC250AR0
Inch Size RealiSlim Open Bearings
Dimensions: Bore (Inner) Diameter: 25.000"； Outer Diameter: 25.750"； Width (Thickness): 0.375";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Angular | |
| Construction | Single Row | |
| Contact Angle | 30° | |
| Seal Type | Open | |
| Cross Section | 3/8" x 3/8" | |
| Part Number | KC250AR0 | |
| For Shaft Diameter | 25.000" | |
| Bore Dia (d) | 25.000" | |
| Bore Dia Tolerance | -0.0018"- 0" | |
| For Housing ID | 25.750" | |
| Outer Dia (D) | 25.750" | |
| Outer Dia Tolerance | -0.0018"- 0" | |
| Width (B) | 0.375" | |
| Width Tolerance | +.000 –.010" | |
| Land dia.L1 | 25.277" | |
| Land dia.L2 | 25.473" | |
| C'Bore dia.L3 | 25.500" | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic(lbs) | Radial | 3233 |
| Thrust | 9010 | |
| Static (lbs) | Radial | 14900 |
| Thrust | 43280 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (lbs) | 2.520 | |
