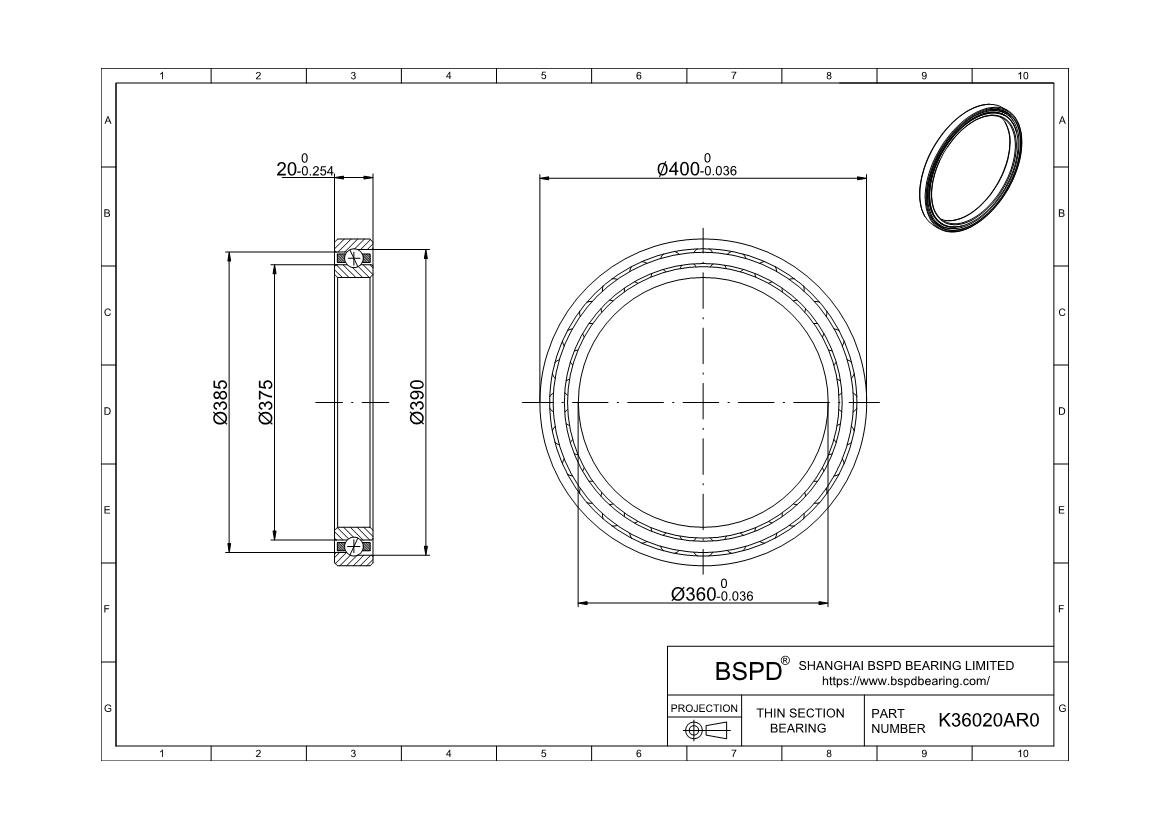

K36020AR0 RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 400 mm； Width (Thickness): 20 mm;

REQUEST FOR QUOTE

Product Attributes

Bearing Type		Ball
For Load Direction		Angular
Construction		Single Row
Contact Angle		30°
Seal Type		Open
Cross Section		20 mm
Part Number		K36020AR0
For Shaft Diameter		360 mm
Bore Dia (d)		360 mm
Bore Dia Tolerance		-0.036mm to 0
For Housing ID		400 mm
Outer Dia (D)		400 mm
Outer Dia Tolerance		-0.036mm to 0
Width (B)		20 mm
Width Tolerance		+.000 –.254mm
Land dia.L1		375
Land dia.L2		385
C'Bore dia.L3		390
Ring Material		52100 Chrome steel
Ball Material		52100 Chrome steel
Cage Material		Brass
Dynamic radial (N)		36138
Static (N)	Thrust	91202
	Radial	102519
	Thrust	295945
Lubrication		Lubricated
Shaft Mount Type		Press Fit
Temperature Range		-30° to 110 °C
ABEC Rating		ABEC-1
Radial Clearance		0.0000 – 0.0005"
RoHS		Compliant
Weight (kg)		2.66

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
