K20020CP0
RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 200 mm; Outer Diameter: 240 mm; Width (Thickness): 20 mm;
![K20020CP0](https://www.bspdbearing.com/wp-content/uploads/2021/05/8_13_20_open.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Cross Section | 20 mm |
Part Number | K20020CP0 |
For Shaft Diameter | 200 mm |
Bore Dia (d) | 200 mm |
Bore Dia Tolerance | -0.03mm to 0 |
For Housing ID | 240 mm |
Outer Dia (D) | 240 mm |
Outer Dia Tolerance | -0.03mm to 0 |
Width (B) | 20 mm |
Width Tolerance | +.000 –.254mm |
Land dia.L1 | 215 |
Land dia.L2 | 225 |
Ring Material | 52100 Chrome steel |
Ball Material | 52100 Chrome steel |
Cage Material | Brass |
Dynamic radial (N) | 24585 |
Static radial (N) | 48494 |
Lubrication | Lubricated |
Shaft Mount Type | Press Fit |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | 0.0000 – 0.0005" |
RoHS | Compliant |
Weight (kg) | 1.60 |

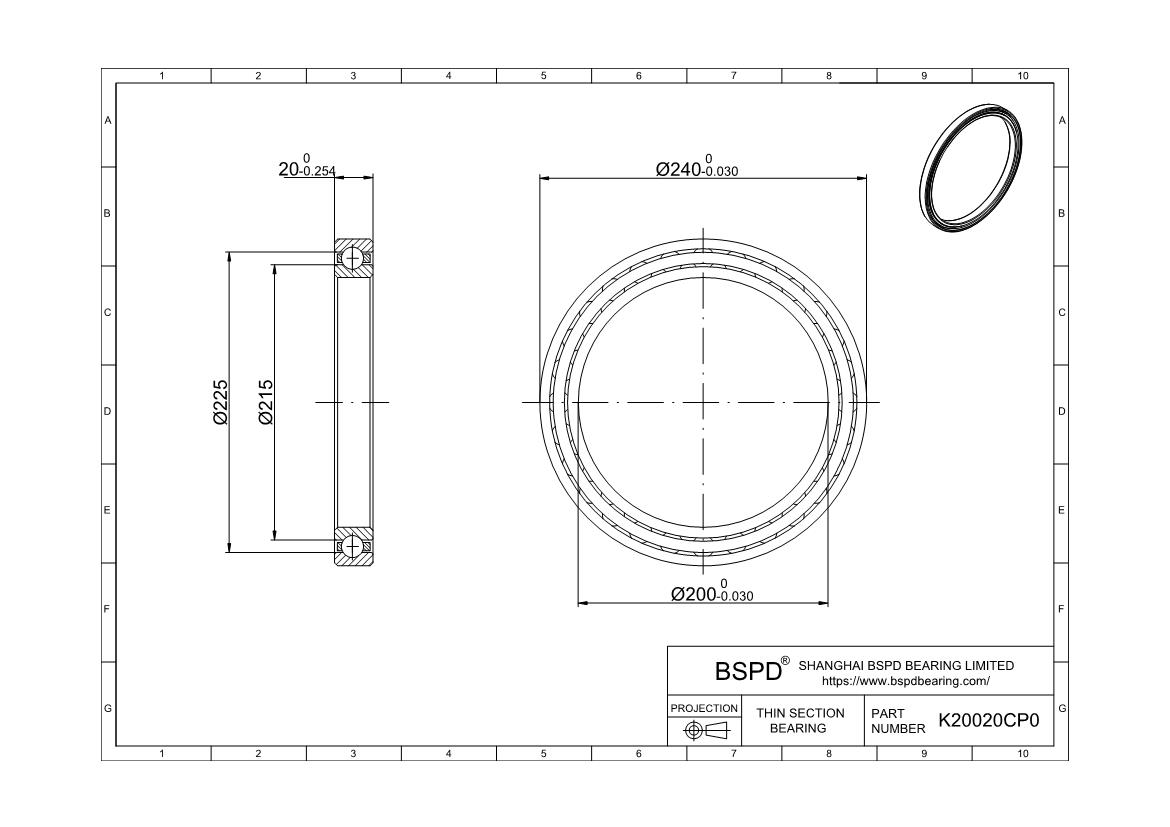

![K20020CP0](/wp-content/uploads/pdf/K20020CP0/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings K20020CP0 ? RealiSlim MM Thin Section Metric Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
