K20013XP0
RealiSlim MM Thin Section Metric Bearings

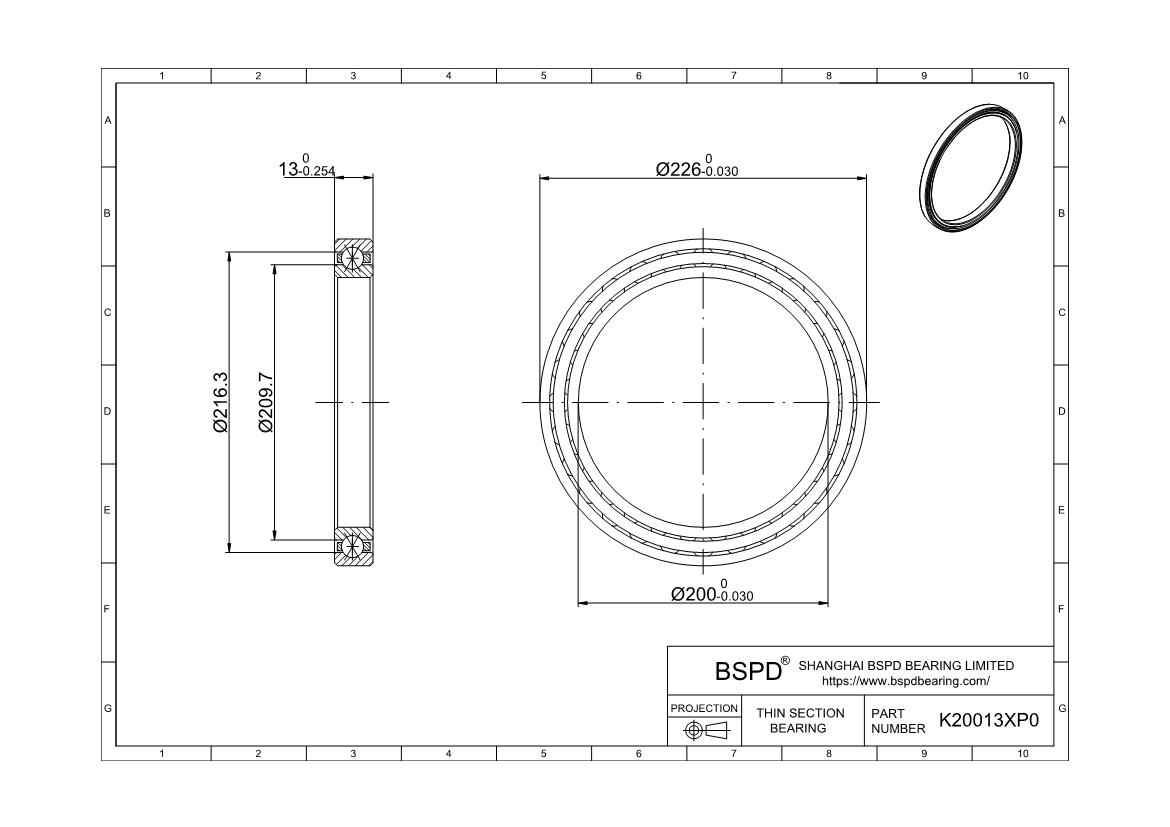

Dimensions: Bore (Inner) Diameter: 200 mm； Outer Diameter: 226 mm； Width (Thickness): 13 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Cross Section | 13 mm | |
| Part Number | K20013XP0 | |
| For Shaft Diameter | 200 mm | |
| Bore Dia (d) | 200 mm | |
| Bore Dia Tolerance | -0.03mm to 0 | |
| For Housing ID | 226 mm | |
| Outer Dia (D) | 226 mm | |
| Outer Dia Tolerance | -0.03mm to 0 | |
| Width (B) | 13 mm | |
| Width Tolerance | +.000 –.254mm | |
| Land dia.L1 | 209.7 | |
| Land dia.L2 | 216.3 | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic (N) | Radial | 18319 |
| Thrust | 28910 | |
| Moment | 1464 | |
| Static (N) | Radial | 31695 |
| Thrust | 79238 | |
| Moment | 3375 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (kg) | 0.63 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings K20013XP0 ? RealiSlim MM Thin Section Metric Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
