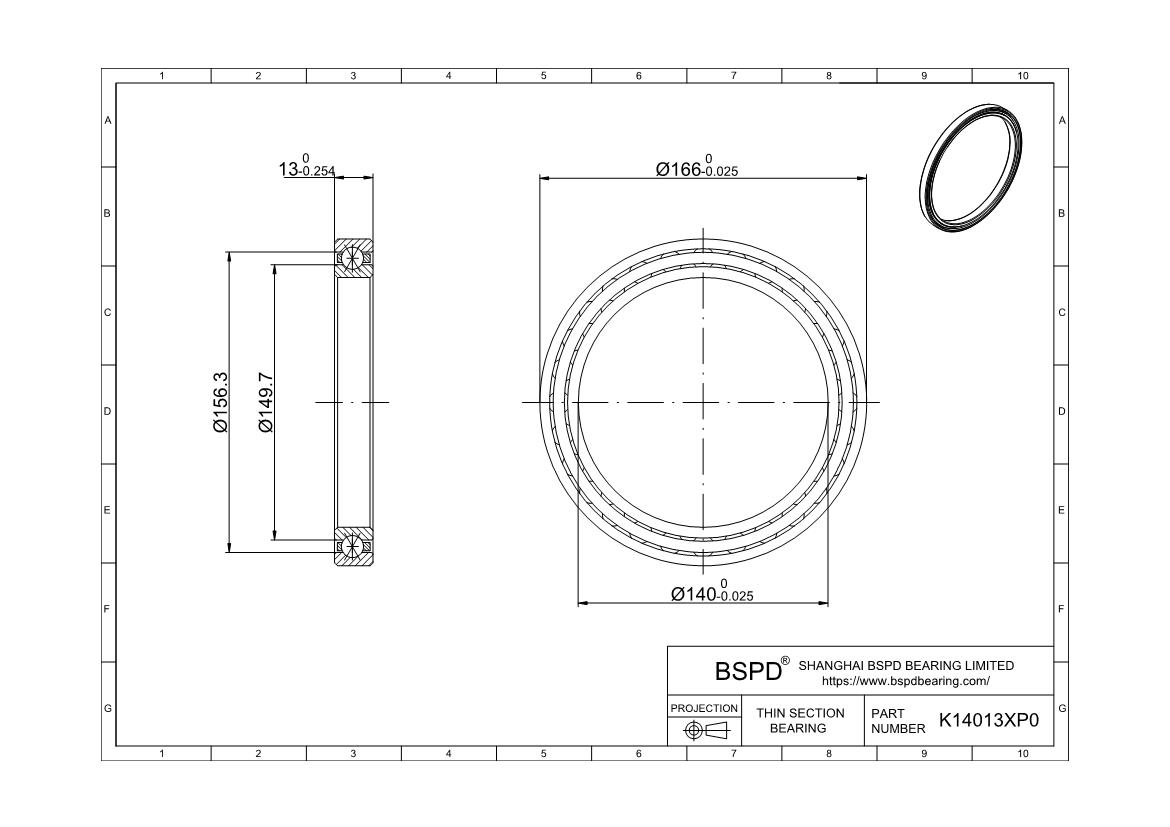

K14013XP0 RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 166 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Bearing Type		Ball
For Load Direction		Four Point
Construction		Single Row
Seal Type		Open
Cross Section		13 mm
Part Number		K14013XP0
For Shaft Diameter		140 mm
Bore Dia (d)		140 mm
Bore Dia Tolerance		-0.025mm to 0
For Housing ID		166 mm
Outer Dia (D)		166 mm
Outer Dia Tolerance		-0.025mm to 0
Width (B)		13 mm
Width Tolerance		+.000 –.254mm
Land dia.L1		149.7
Land dia.L2		156.3
Ring Material		52100 Chrome steel
Ball Material		52100 Chrome steel
Cage Material		Brass
Dynamic (N)	Radial	15141
	Thrust	23222
	Moment	869
Static (N)	Radial	22820
	Thrust	57045
	Moment	1746
Lubrication		Lubricated
Shaft Mount Type		Press Fit
Temperature Range		-30° to 110 °C
ABEC Rating		ABEC-1
Radial Clearance		0.0000 – 0.0005"
RoHS		Compliant
Weight (kg)		0.46
