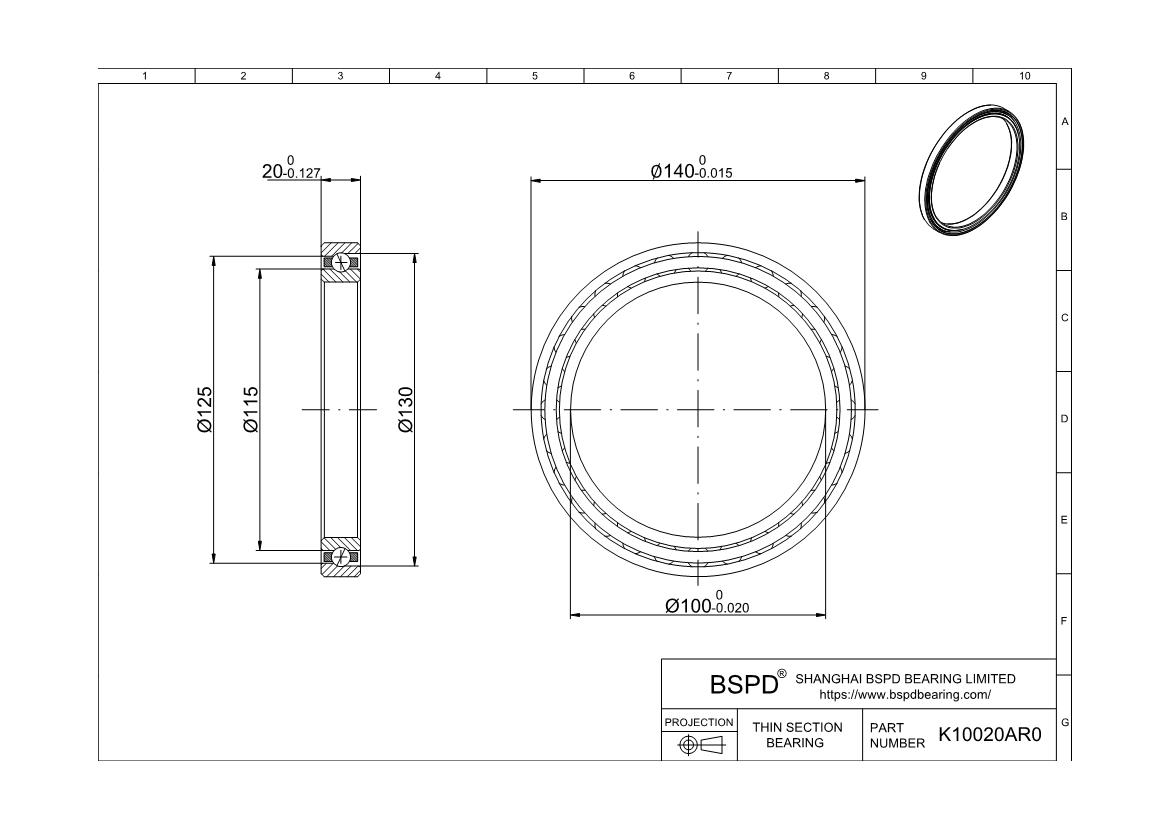

K10020AR0 RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 140 mm； Width (Thickness): 20 mm;

REQUEST FOR QUOTE

Product Attributes

Bearing Type		Ball
For Load Direction		Angular
Construction		Single Row
Contact Angle		30°
Seal Type		Open
Cross Section		20 mm
Part Number		K10020AR0
For Shaft Diameter		100 mm
Bore Dia (d)		100 mm
Bore Dia Tolerance		-0.02mm to 0
For Housing ID		140 mm
Outer Dia (D)		140 mm
Outer Dia Tolerance		-0.015mm to 0
Width (B)		20 mm
Width Tolerance		+.000 –.127mm
Land dia.L1		115
Land dia.L2		125
C'Bore dia.L3		130
Ring Material		52100 Chrome steel
Ball Material		52100 Chrome steel
Cage Material		Brass
Dynamic radial (N)		18917
Static (N)	Thrust	42071
	Radial	32117
	Thrust	92702
Lubrication		Lubricated
Shaft Mount Type		Press Fit
Temperature Range		-30° to 110 °C
ABEC Rating		ABEC-1
Radial Clearance		0.0000 – 0.0005"
RoHS		Compliant
Weight (kg)		0.84

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
