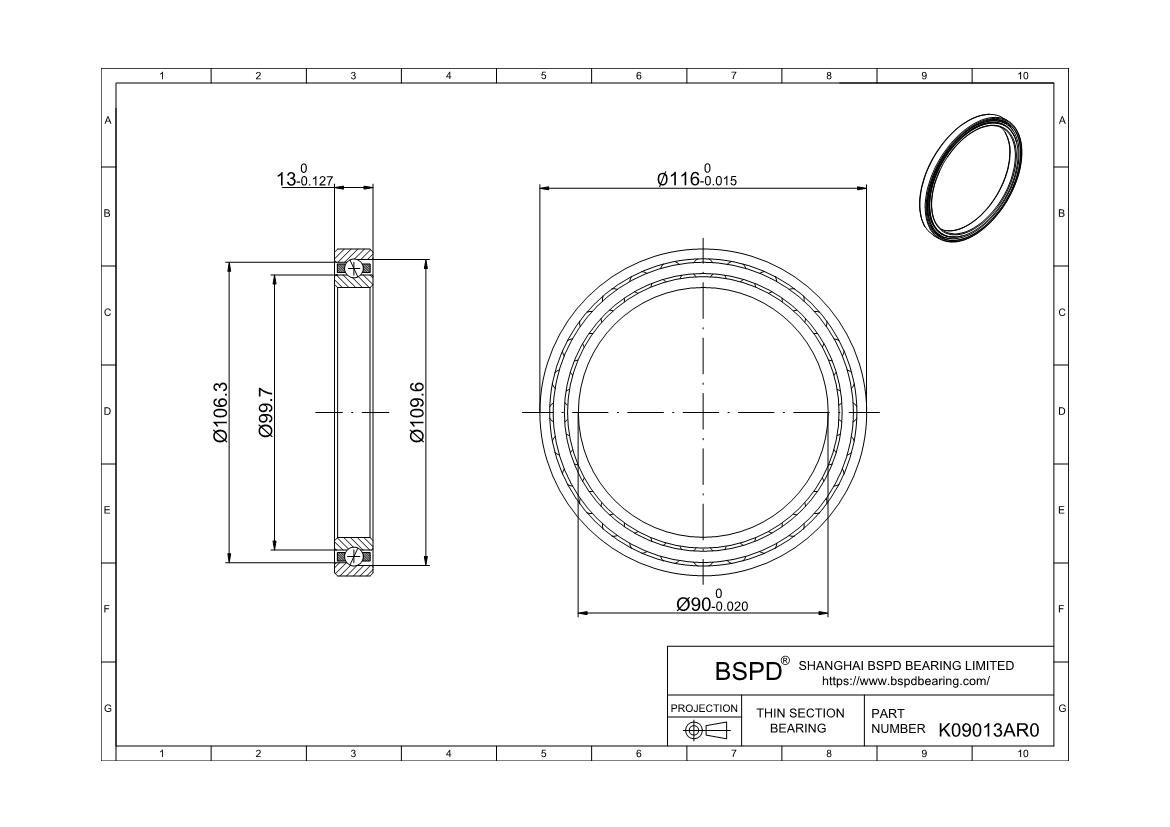

K09013AR0
RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 116 mm； Width (Thickness): 13 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Angular | |
| Construction | Single Row | |
| Contact Angle | 30° | |
| Seal Type | Open | |
| Cross Section | 13 mm | |
| Part Number | K09013AR0 | |
| For Shaft Diameter | 90 mm | |
| Bore Dia (d) | 90 mm | |
| Bore Dia Tolerance | -0.02mm to 0 | |
| For Housing ID | 116 mm | |
| Outer Dia (D) | 116 mm | |
| Outer Dia Tolerance | -0.015mm to 0 | |
| Width (B) | 13 mm | |
| Width Tolerance | +.000 –.127mm | |
| Land dia.L1 | 99.7 | |
| Land dia.L2 | 106.3 | |
| C'Bore dia.L3 | 109.6 | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic radial (N) | 9454 | |
| Static (N) | Thrust | 21477 |
| Radial | 17564 | |
| Thrust | 50710 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (kg) | 0.31 | |
