K06020AR0
RealiSlim MM Thin Section Metric Bearings

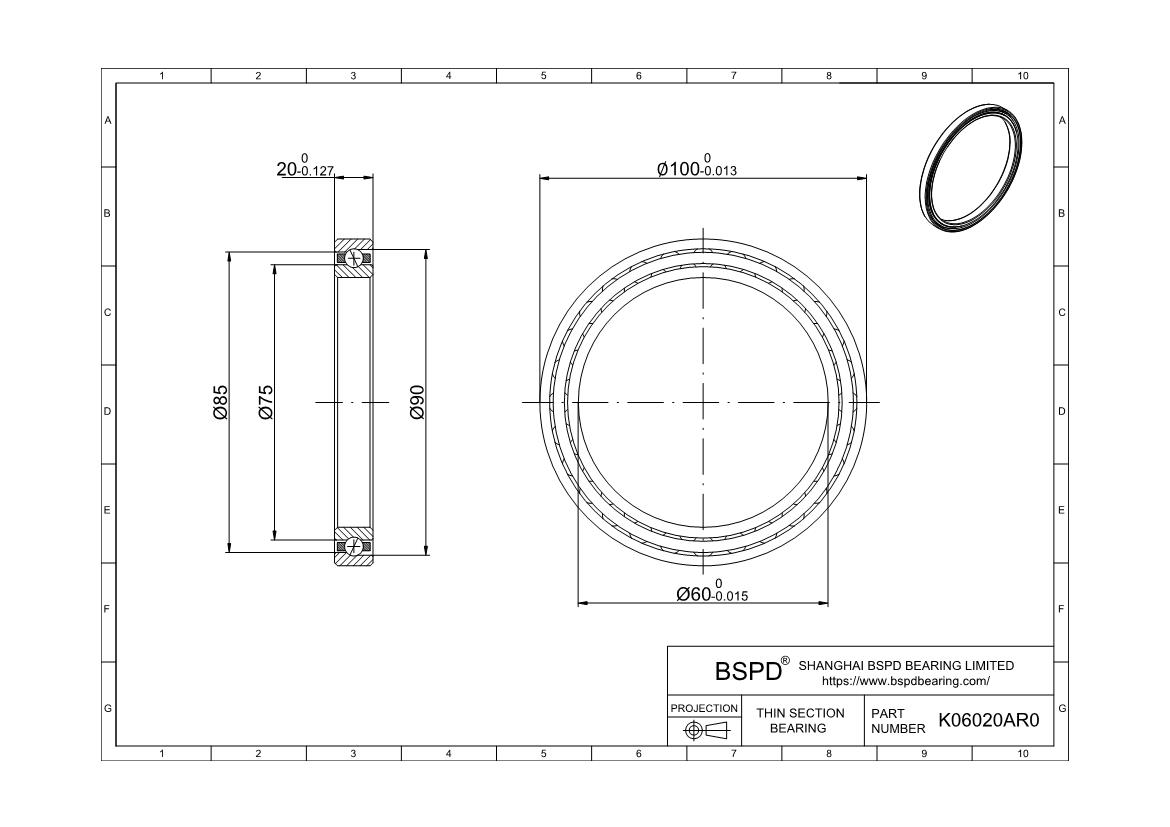

Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 100 mm； Width (Thickness): 20 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Angular | |
| Construction | Single Row | |
| Contact Angle | 30° | |
| Seal Type | Open | |
| Cross Section | 20 mm | |
| Part Number | K06020AR0 | |
| For Shaft Diameter | 60 mm | |
| Bore Dia (d) | 60 mm | |
| Bore Dia Tolerance | -0.015mm to 0 | |
| For Housing ID | 100 mm | |
| Outer Dia (D) | 100 mm | |
| Outer Dia Tolerance | -0.013mm to 0 | |
| Width (B) | 20 mm | |
| Width Tolerance | +.000 –.127mm | |
| Land dia.L1 | 75 | |
| Land dia.L2 | 85 | |
| C'Bore dia.L3 | 90 | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic radial (N) | 15171 | |
| Static (N) | Thrust | 31685 |
| Radial | 20996 | |
| Thrust | 60615 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (kg) | 0.56 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings K06020AR0 ? RealiSlim MM Thin Section Metric Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
