J05008XP0 RealiSlim MM Thin Section Metric Bearings

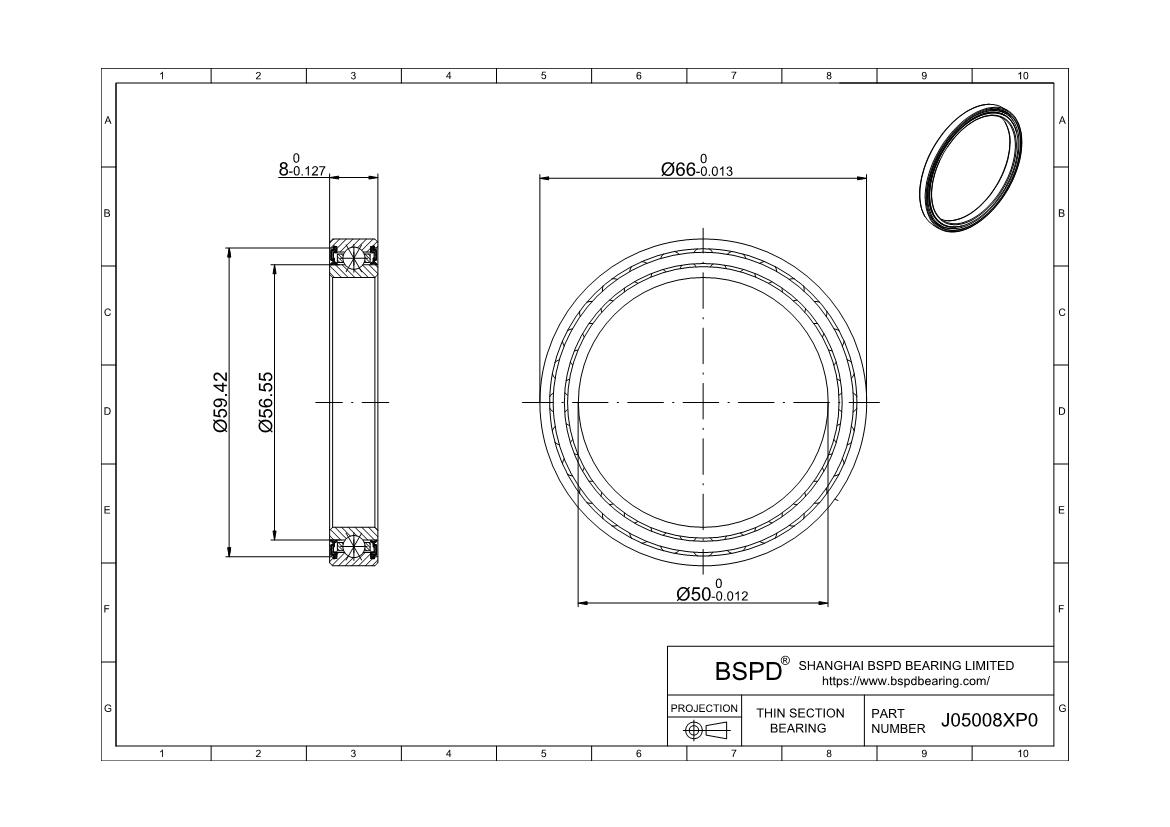

Dimensions: Bore (Inner) Diameter: 50 mm； Outer Diameter: 66 mm； Width (Thickness): 8 mm;

REQUEST FOR QUOTE

Product Attributes

Bearing Type		Ball
For Load Direction		Four Point
Construction		Single Row
Seal Type		Sealed
Cross Section		8 mm
Part Number		J05008XP0
For Shaft Diameter		50 mm
Bore Dia (d)		50 mm
Bore Dia Tolerance		-0.012mm to 0
For Housing ID		66 mm
Outer Dia (D)		66 mm
Outer Dia Tolerance		-0.013mm to 0
Width (B)		8 mm
Width Tolerance		+.000 –.127mm
Land dia.L1		56.55
Land dia.L2		59.42
Ring Material		52100 Chrome steel
Ball Material		52100 Chrome steel
Cage Material		Brass
Dynamic (N)	Radial	4511
	Thrust	6531
	Moment	98
Static (N)	Radial	5443
	Thrust	13621
	Moment	158
Lubrication		Lubricated
Shaft Mount Type		Press Fit
Temperature Range		-30° to 110 °C
ABEC Rating		ABEC-1
Radial Clearance		0.0000 – 0.0005"
RoHS		Compliant
Weight (kg)		0.05

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
