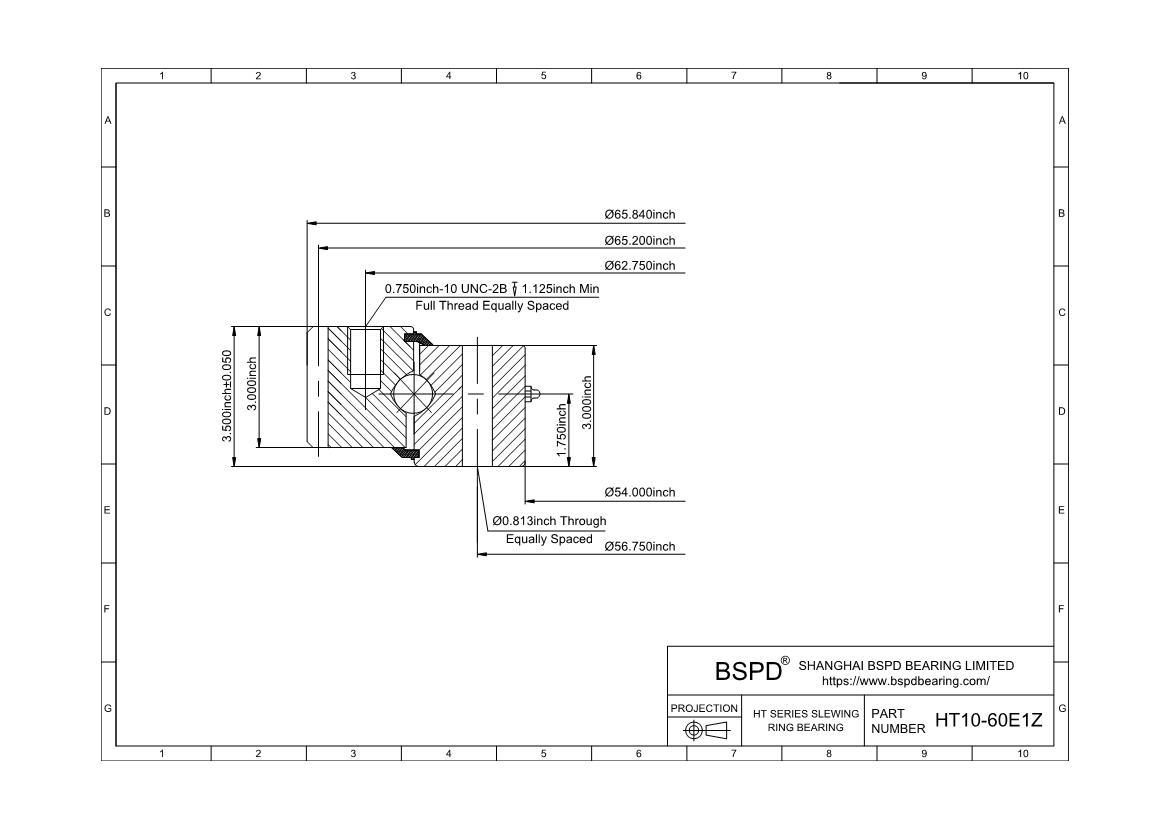

HT10-60E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 54.0"； Outer Diameter: 65.84"； Width (Thickness): ;
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | HT10-60E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 19090lbs | 85.223KN |
| Moment Load Rating (Crm) | 638800ft-lbs | 2851.786KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 65.84" | 1672.34mm |
| Inside Diameter of Inner Ring (di) | 54" | 1371.6mm |
| Internal Diameter on Outer Ring (Di) | - |
| External Diameter on Inner Ring (do) | - |
| Approximate Weight (lbs) | 800lbs | 362.872KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 62.75" | 1593.85mm |
| Number Holes in Outer Ring (no) | 44 |
| Bolt Circle in Inner Ring (Li) | 56.75" | 1441.45mm |
| Number Holes in Inner Ring (ni) | 48 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20° |
| Pitch Diameter (D2) | 65.2lbs | 0.291KN |
| Diametral Pitch (Pd) | 2.5lbs | 0.011KN |
| Number of Teeth (z2) | 163 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HT10-60E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
REQUEST FOR QUOTE
- Fast Delivery √
- Best Quality √
- Good Price √
