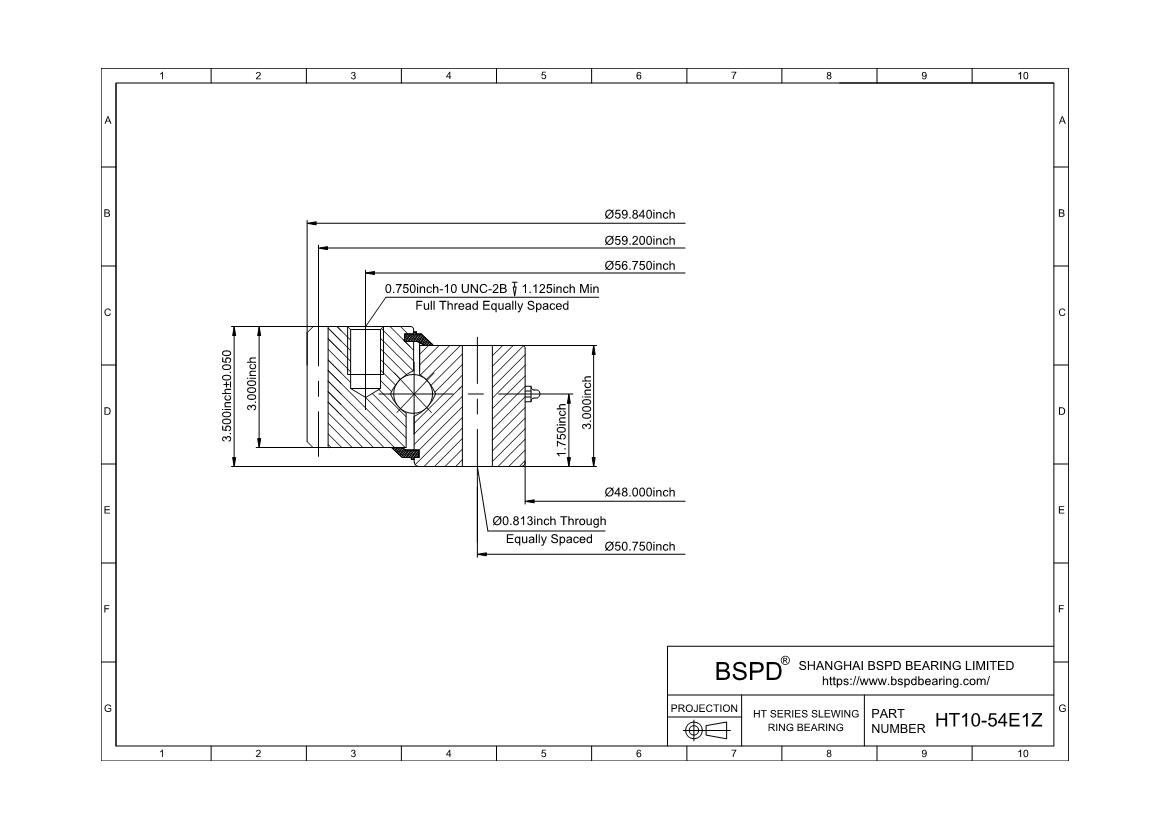

HT10-54E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 48.0"； Outer Diameter: 59.84"； Width (Thickness): ;
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | HT10-54E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 19005lbs | 84.844KN |
| Moment Load Rating (Crm) | 578400ft-lbs | 2582.143KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 59.84" | 1519.94mm |
| Inside Diameter of Inner Ring (di) | 48" | 1219.2mm |
| Internal Diameter on Outer Ring (Di) | - |
| External Diameter on Inner Ring (do) | - |
| Approximate Weight (lbs) | 742lbs | 336.564KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 56.75" | 1441.45mm |
| Number Holes in Outer Ring (no) | 40 |
| Bolt Circle in Inner Ring (Li) | 50.75" | 1289.05mm |
| Number Holes in Inner Ring (ni) | 44 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20° |
| Pitch Diameter (D2) | 59.2" |
| Diametral Pitch (Pd) | 2.5 |
| Number of Teeth (z2) | 148 |
Print PDF
Request a 3D CAD Model
