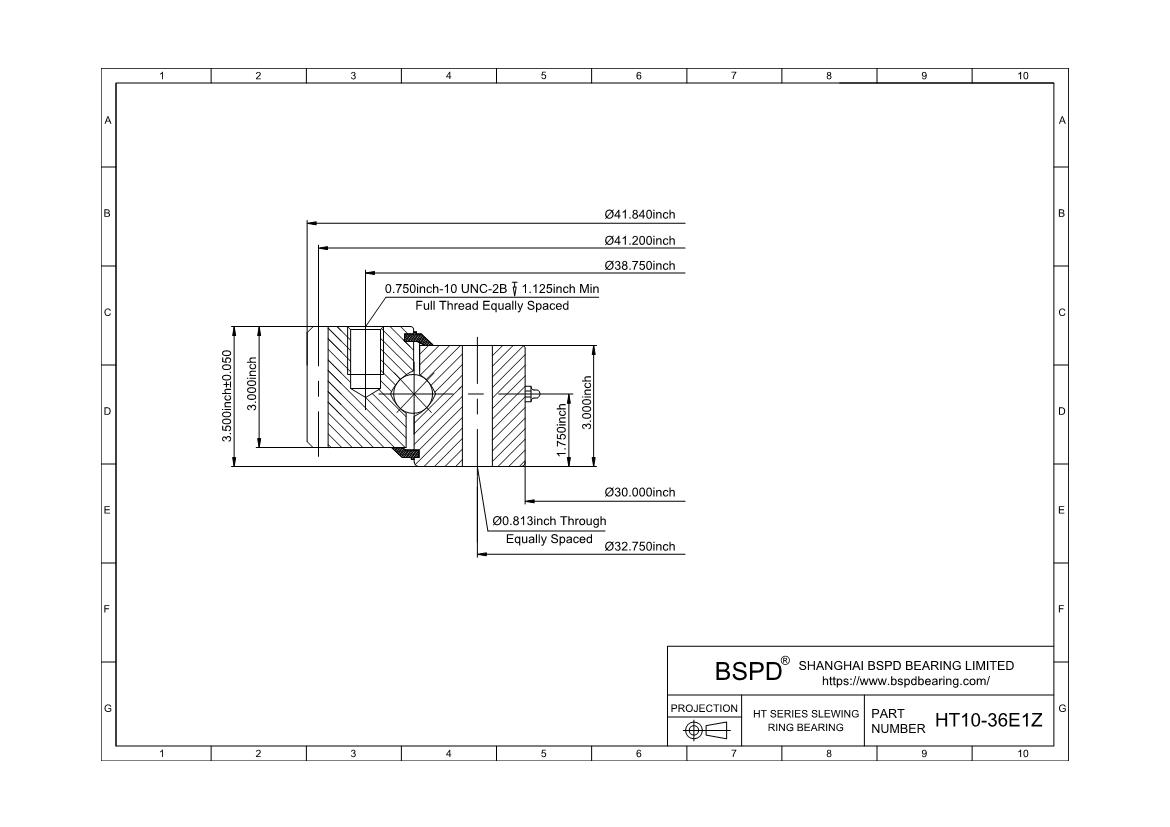

HT10-36E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 30.0"； Outer Diameter: 41.84"； Width (Thickness): ;
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | HT10-36E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 18608lbs | 83.071KN |
| Moment Load Rating (Crm) | 395700ft-lbs | 1766.518KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 41.84" | 1062.74mm |
| Inside Diameter of Inner Ring (di) | 30" | 762mm |
| Internal Diameter on Outer Ring (Di) | - |
| External Diameter on Inner Ring (do) | - |
| Approximate Weight (lbs) | 481lbs | 218.177KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 38.75" | 984.25mm |
| Number Holes in Outer Ring (no) | 28 |
| Bolt Circle in Inner Ring (Li) | 32.75" | 831.85mm |
| Number Holes in Inner Ring (ni) | 32 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20° |
| Pitch Diameter (D2) | 41.2" |
| Diametral Pitch (Pd) | 2.5 |
| Number of Teeth (z2) | 103 |
Print PDF
Request a 3D CAD Model
