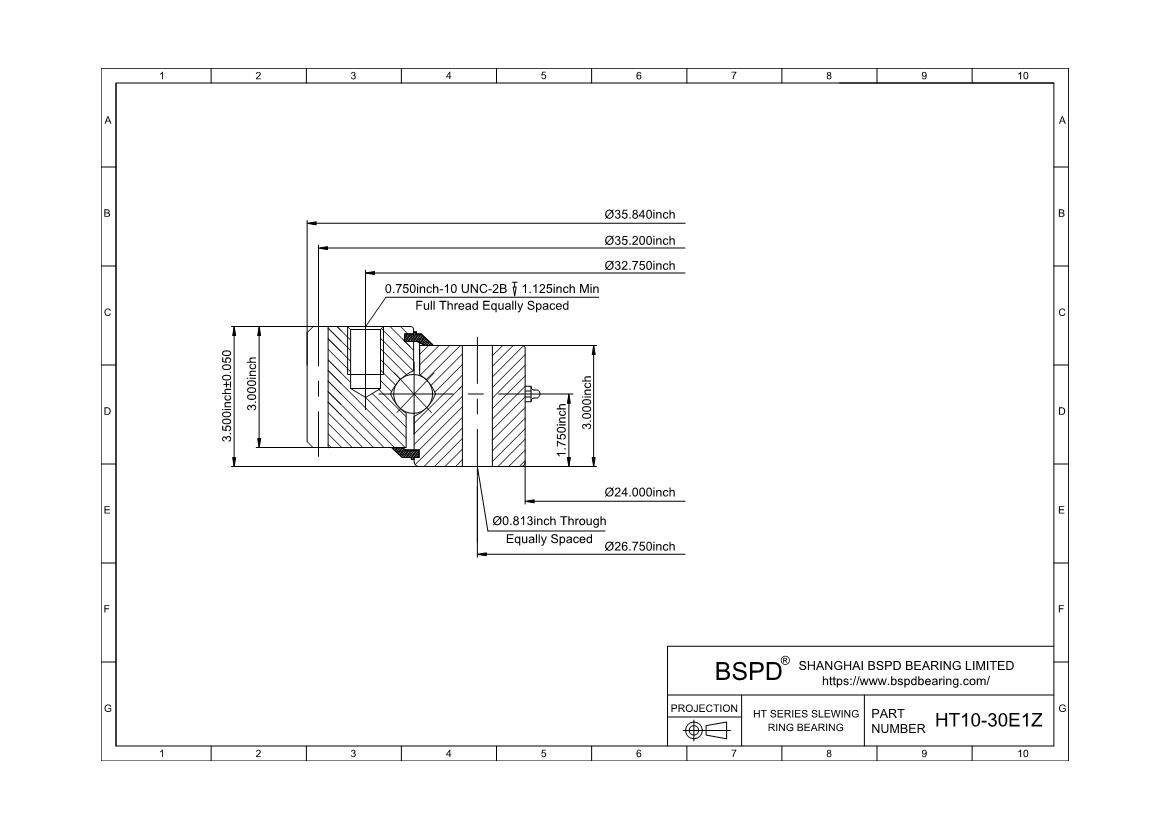

HT10-30E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 24.0"； Outer Diameter: 35.84"； Width (Thickness): ;
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | HT10-30E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 18393lbs | 82.112KN |
| Moment Load Rating (Crm) | 340000ft-lbs | 1517.857KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 35.84" | 910.34mm |
| Inside Diameter of Inner Ring (di) | 24" | 609.6mm |
| Internal Diameter on Outer Ring (Di) | - |
| External Diameter on Inner Ring (do) | - |
| Approximate Weight (lbs) | 398lbs | 180.529KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 32.75" | 831.85mm |
| Number Holes in Outer Ring (no) | 24 |
| Bolt Circle in Inner Ring (Li) | 26.75" | 679.45mm |
| Number Holes in Inner Ring (ni) | 30 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20° |
| Pitch Diameter (D2) | 35.2" |
| Diametral Pitch (Pd) | 2.5 |
| Number of Teeth (z2) | 88 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HT10-30E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
REQUEST FOR QUOTE
- Fast Delivery √
- Best Quality √
- Good Price √
