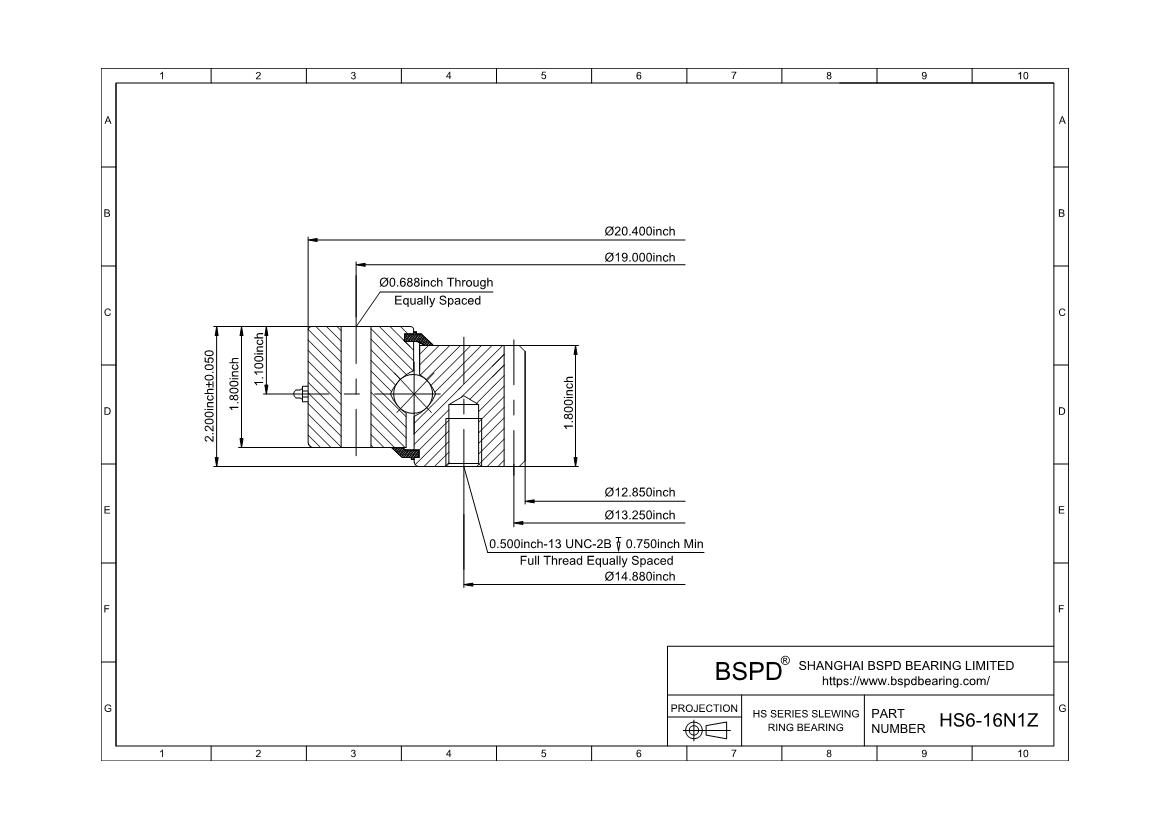

HS6-16N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 12.85"； Outer Diameter: 20.4"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-16N1Z |
| Moment Load Rating (Crm) | 50,500ft-lbs | 225.446KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 6,084lbs | 27.161KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 20.400" | 518.16mm |
| Inside Diameter of Inner Ring (di) | 12.850" | 326.39mm |
| Approximate Weight (lb) | 92lbs | 41.73KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 19.000" | 482.6mm |
| Number Holes in Outer Ring (no) | 8 |
| Bolt Circle in Inner Ring (Li) | 14.880" | 377.95mm |
| Number Holes in Inner Ring (ni) | 16 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 13.250" | 336.55mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 53 |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-16N1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
