HS6-16E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 12.0"； Outer Diameter: 19.9"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-16E1Z |
| Moment Load Rating (Crm) | 50,500ft-lbs | 225.446KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 4,981lbs | 22.237KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 19.900" | 505.46mm |
| Inside Diameter of Inner Ring (di) | 12.000" | 304.8mm |
| Approximate Weight (lb) | 85lbs | 38.555KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 18.000" | 457.2mm |
| Number Holes in Outer Ring (no) | 14 |
| Bolt Circle in Inner Ring (Li) | 13.500" | 342.9mm |
| Number Holes in Inner Ring (ni) | 12 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 19.500" | 495.3mm |
| Diametral Pitch (Pd) | 4" | 101.6mm |
| Number of Gear Teeth (z2) | 78 |
| Mating Pinions | 39200001 39200002 |
Print PDF

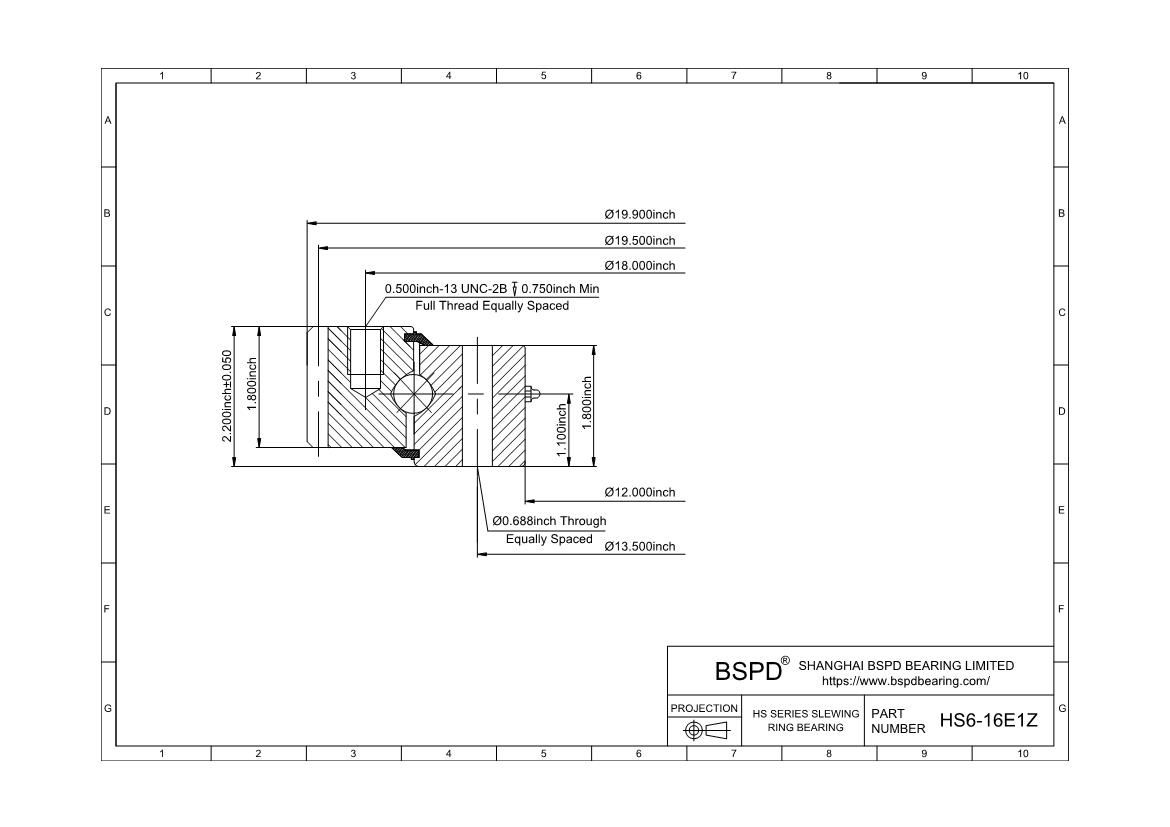

Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-16E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
