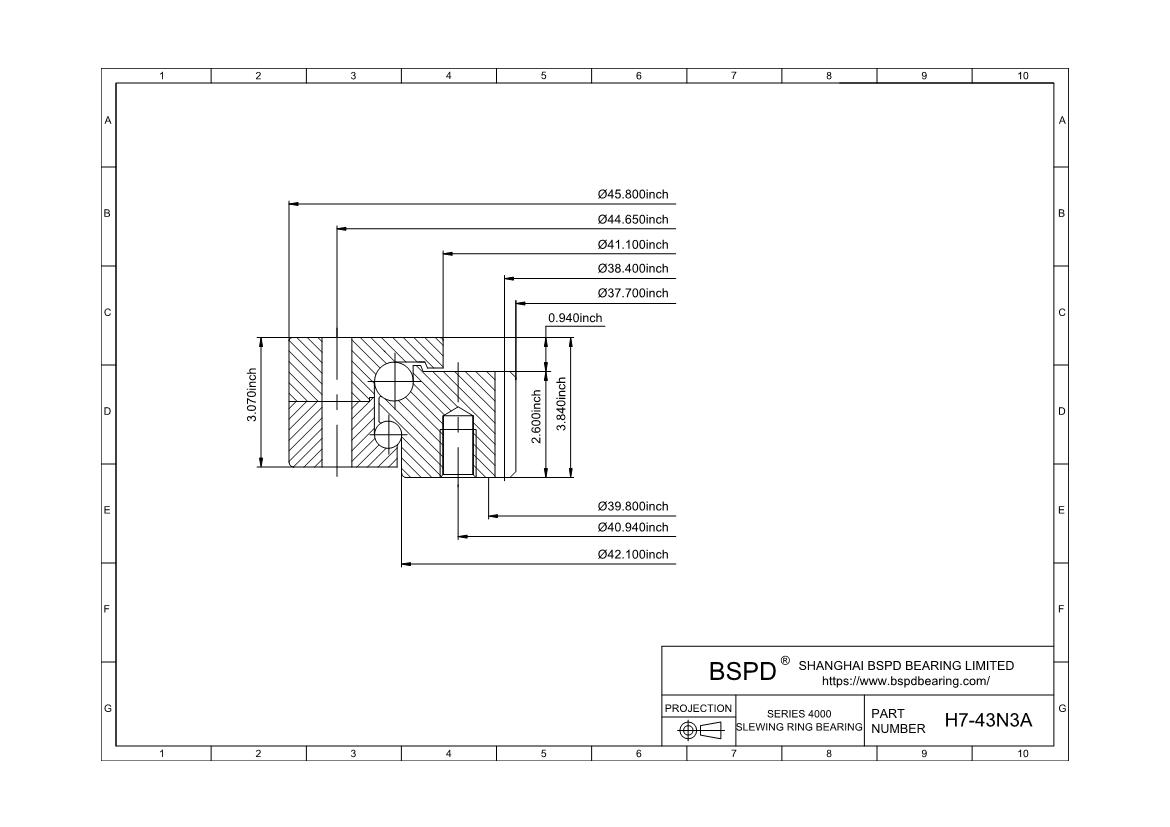

H7-43N3A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 37.8"； Outer Diameter: 45.8"； Width (Thickness): 3.84";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | H7-43N3A |
| Raceway Moment (ft-lbs) | 333000 |
| Compressive Thrust(lbs) | 412000 |
| Weight(lbs) | 355 |
| Fig. no. | 4 |
| Outline Dimensions(inches) | |
| OD | 45.8 |
| ID | 37.8 |
| OE | - |
| OI | 41.1 |
| IO | 42.1 |
| HT | 3.84 |
| OH | 3.07 |
| IH | 2.6 |
| Mounting Holes | |
| OBC | 44.65 |
| OU | 0.71 |
| No of OBC Holes | 36 |
| IBC | 40.94 |
| IU | 5/8-11 |
| No of IBC Holes | 36 |
| Gear Data | |
| K | 0.94 |
| PD | 38.4 |
| DP | 2.5 |
| Tooth From 20 | STUB |
| F | 2.6 |
| NO of Teeth | 96 |
| Gear Hardness(BHN) | 250-300 |
| Max.allow tang.tooth load(lbs) | 13000 |
| Tangential Gear Capacity(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings H7-43N3A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
