H7-43N1 Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 37.7"； Outer Diameter: 45.8"； Width (Thickness): 3.54";

REQUEST FOR QUOTE

Product Attributes

Specifications
Part Number	H7-43N1
Raceway Moment (ft-lbs)	333000
Compressive Thrust(lbs)	412000
Weight(lbs)	350
Fig. no.	2

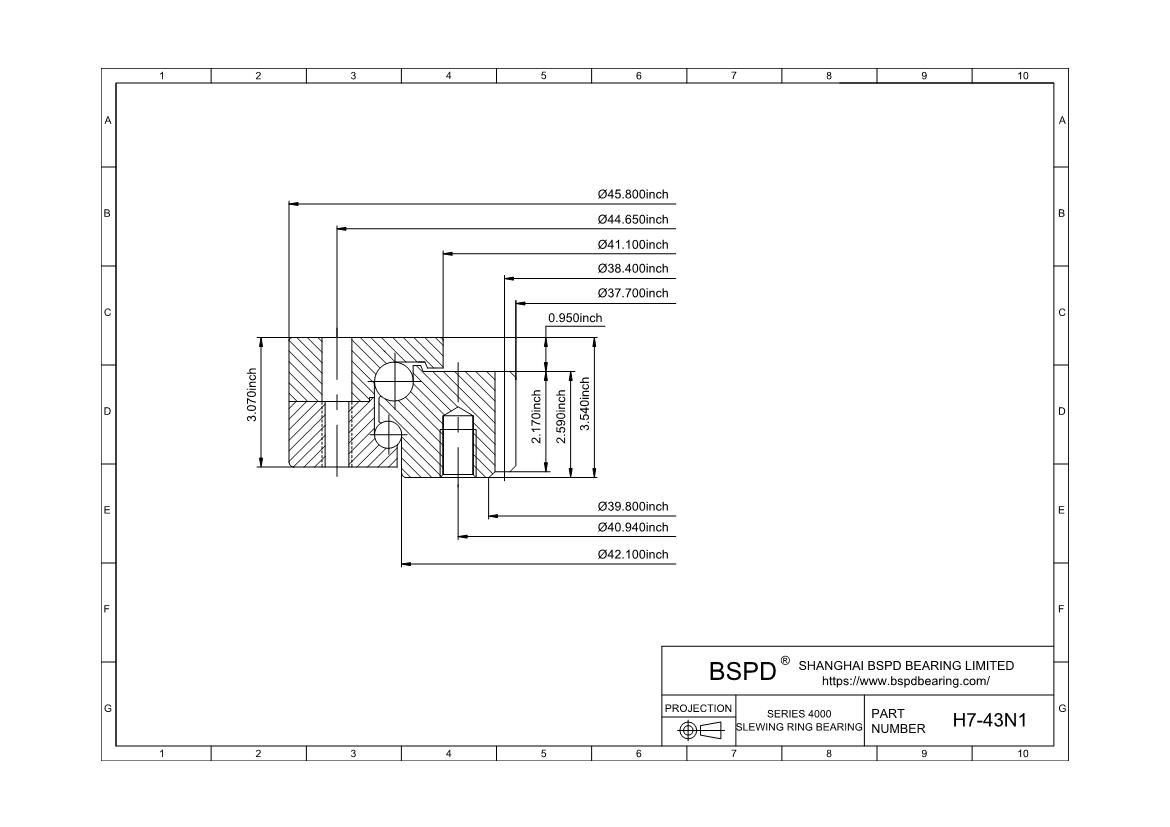

Outline Dimensions(inches)
OD	45.8
ID	37.7
OE	39.8
OI	41.1
IO	42.1
HT	3.54
OH	3.07
IH	2.59
Mounting Holes
OBC	44.65
OU	5/8-11
No of OBC Holes	36
IBC	40.96
IU	5/8-11
No of IBC Holes	36
Gear Data
K	0.95
PD	38.4
DP	2.5
Tooth From 20	F.D.
F	2.17
NO of Teeth	96
Gear Hardness(BHN)	180-210
Max.allow tang.tooth load(lbs)	7100
Tangential Gear Capacity(lbs)

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
