ER1458
ET & ER Series

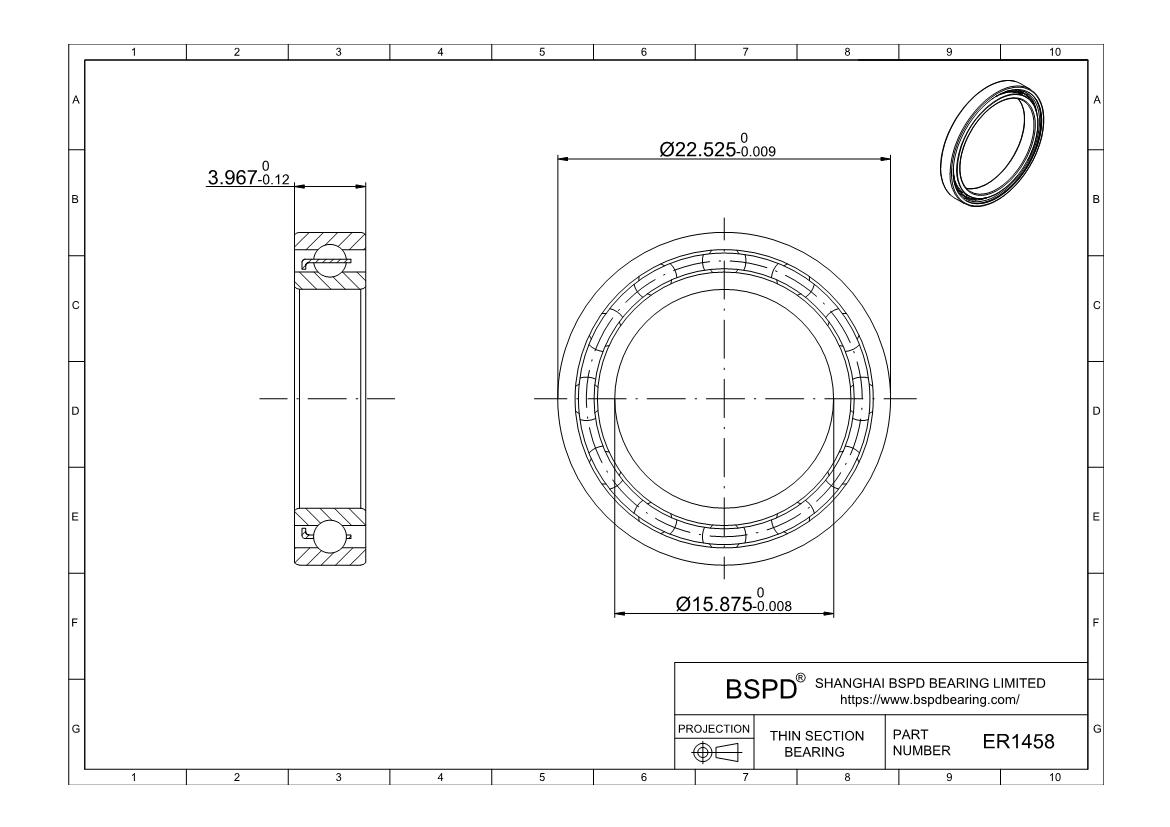

Dimensions: Bore (Inner) Diameter: 15.875 mm； Outer Diameter: 22.225 mm； Width (Thickness): 3.967 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | ER1458 |
| For Shaft Diameter | 15.875mm | 0.625" |
| Bore Dia (d) | 15.875mm | 0.625" |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 22.225mm | 0.875" |
| Outer Dia (D) | 22.225mm | 0.875" |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width (B) | 3.967mm | 0.1562" |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 971 |
| Static Load Rating (Cor) (Newtons) | 620 |
| Max Speed (Grease) (X1000 RPM) | 10 |
| Max Speed (Oil) (X1000 RPM) 2 | 12 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (grams) | 3.64 |
Print PDF
Request a 3D CAD Model
