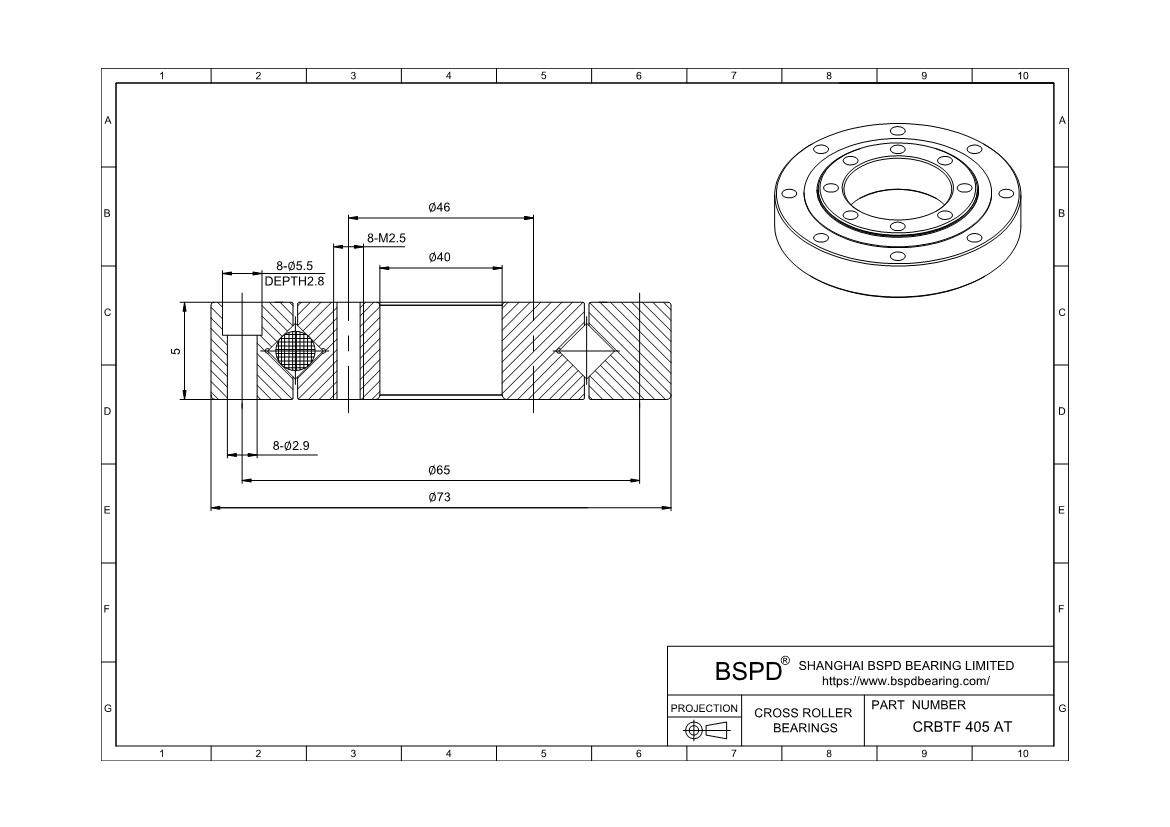

CRBTF405AT
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 73 mm； Width (Thickness): 5 mm;
REQUEST FOR QUOTE
Product Attributes
| Part Number | CRBTF405AT |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 40 |
| Mass(kg) | 0.103 |
| Bore Dia (d) | 40 |
| Outer Dia (D) | 73 |
| Width (B) | 5 |
| Mounting dimensions(da) | 51.5 |
| Mounting dimensions(Da) | 58 |
| r(min) | 0.15 |
| Basic load rating (radial)C kN | 2 440 |
| Basic load rating (radial)Co kN | 3 490 |
| Inner ring PCD1 | 46 |
| Inner ring Mounting hole | 8-M2.5 through |
| Outer ring PCD2 | 65 |
| Outer ring Mounting hole | 8-φ2.9 through φ5.5 counter bore depth 2.8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBTF405AT ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
