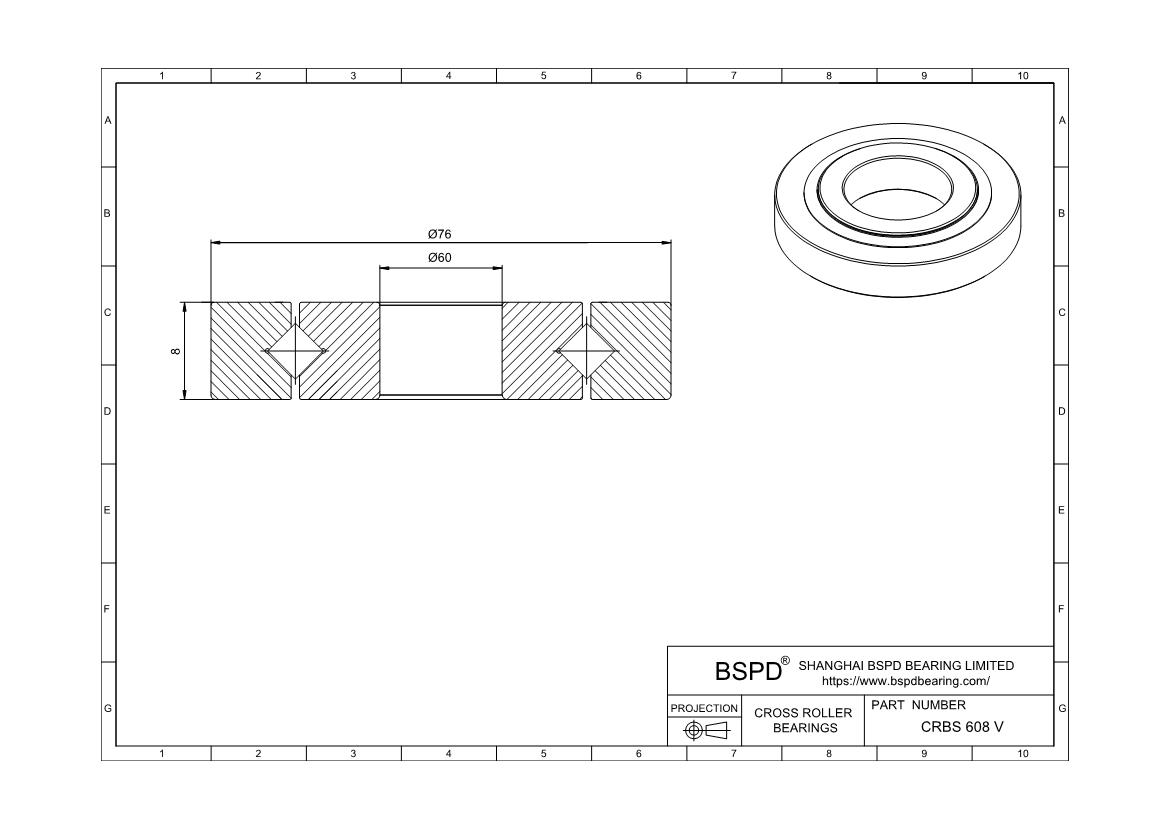

CRBS608V
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 76 mm； Width (Thickness): 8 mm;
REQUEST FOR QUOTE
Product Attributes
| Part Number | CRBS608V |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| Separator | Full complement |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 60 |
| Mass(kg) | 0.094 |
| Bore Dia (d) | 60 |
| Outer Dia (D) | 76 |
| Width (B) | 8 |
| Mounting dimensions(da) | 64 |
| Mounting dimensions(Da) | 71 |
| r(min) | 0.4 |
| Basic load rating (radial)C kN | 7.600 |
| Basic load rating (radial)Co kN | 11.700 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBS608V ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
