CRBFV9025AUU Crossed Roller TYPE

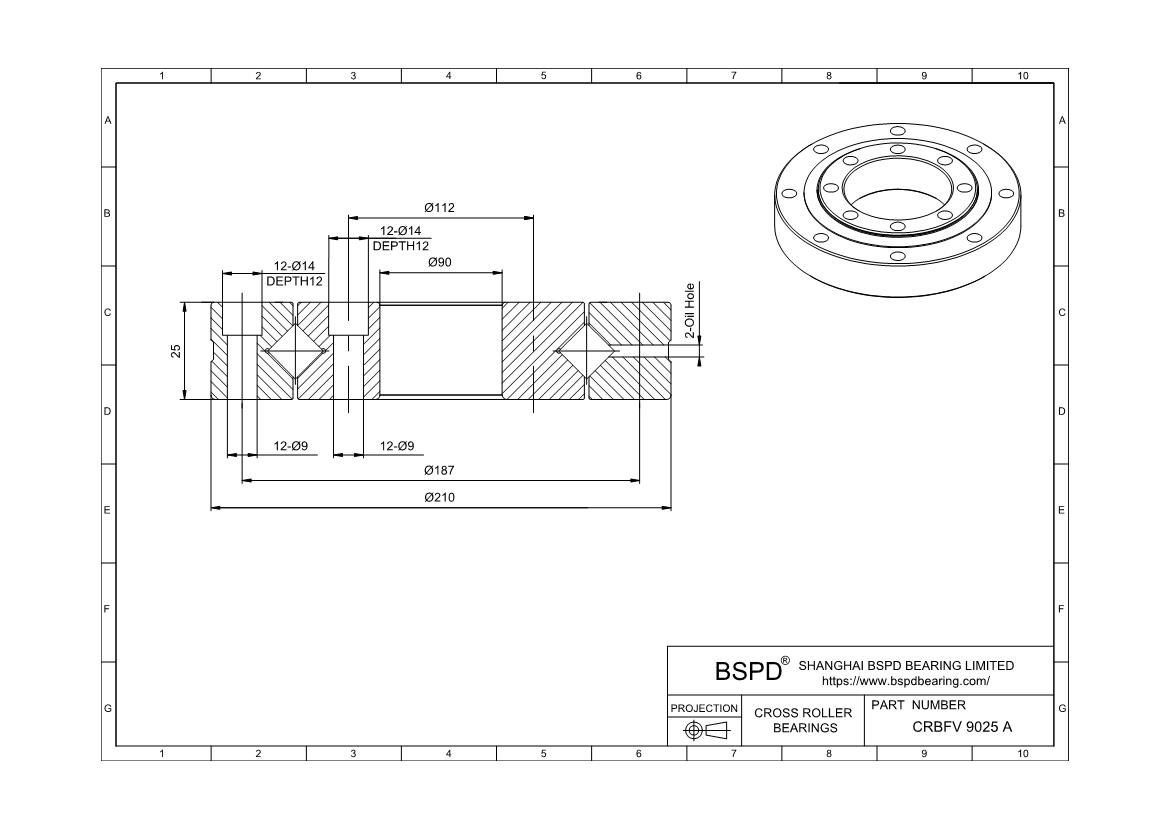

Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 210 mm； Width (Thickness): 25 mm;

CRBFV9025AUU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV9025AUU
THK Part Number
Bearing Type Crossed Roller
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm 90
Mass(kg) 4.67
Bore Dia (d) 90
Outer Dia (D) 210
Width (B) 25
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 73.4
Basic load rating (radial)Co kN 108
Inner ring PCD1 112
Inner ring Mounting hole 12- φ 9 through φ 14 counter bore depth 12
Outer ring PCD2 187
Outer ring Mounting hole 12-φ9 through φ14 counter bore depth 12
CRBFV9025AUU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBFV9025AUU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
