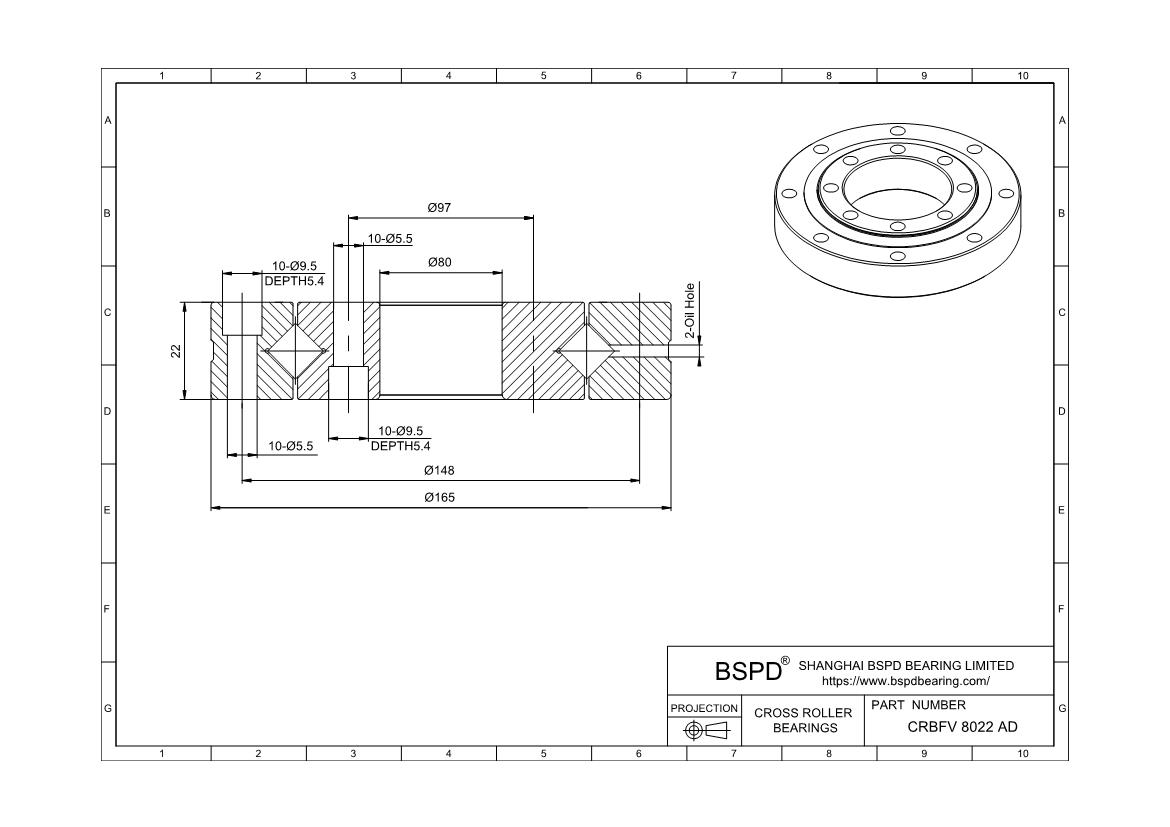

CRBFV8022ADUU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 165 mm； Width (Thickness): 22 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBFV8022ADUU
THK Part Number
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	80
Mass(kg)	2.60
Bore Dia (d)	80
Outer Dia (D)	165
Width (B)	22
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN	51.1
Basic load rating (radial)Co kN	72
Inner ring PCD1	97
Inner ring Mounting hole	10- φ5.5 through φ9.5 counter bore depth 5.4
Outer ring PCD2	148
Outer ring Mounting hole	10-φ5.5 through φ9.5 counter bore depth 5.4

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings CRBFV8022ADUU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
