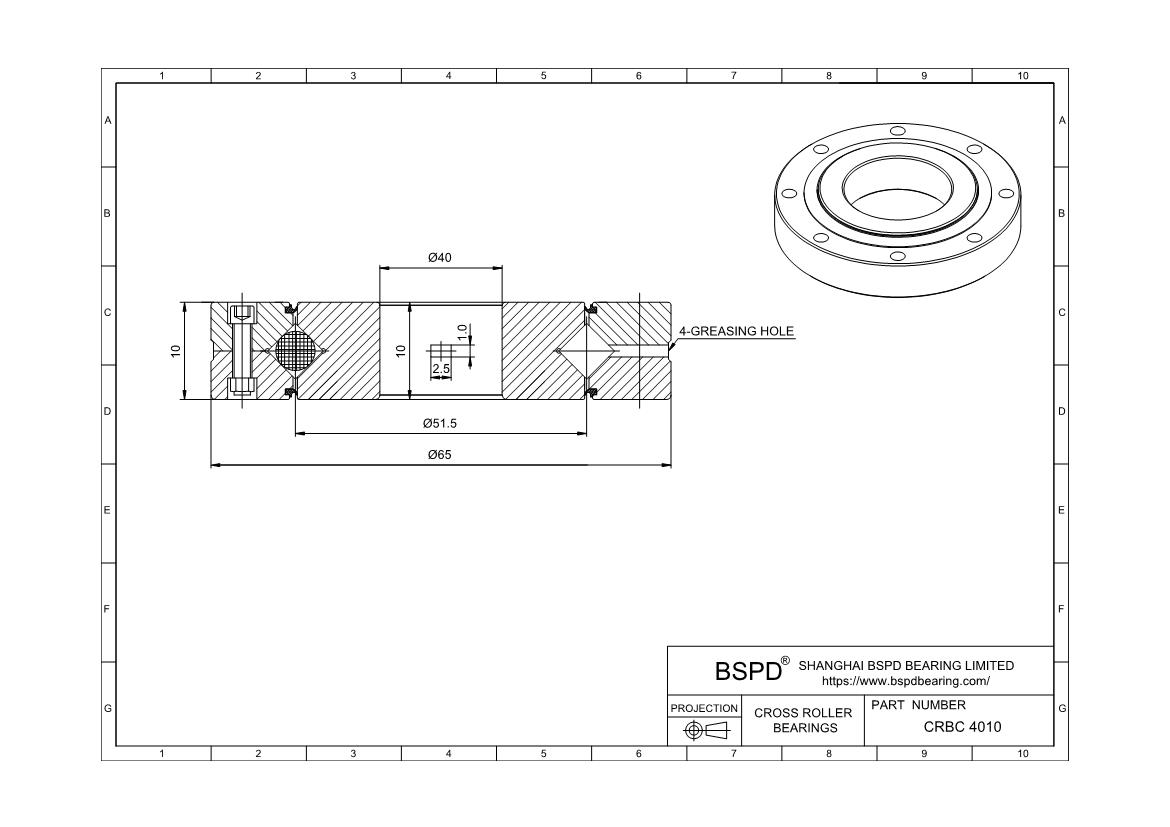

CRBC4010UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 65 mm； Width (Thickness): 10 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBC4010UU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
Separator	With Cage
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	40
Mass(kg)	0.16
Bore Dia (d)	40
Outer Dia (D)	65
Width (B)	10
Greasing hole(d1)
r(min)	0.6
Shoulder height ds(max)	46.5
Shoulder height Dh(min)	57.5
Basic load rating (radial)C kN	8.33
Basic load rating (radial)Co kN	10.6

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings CRBC4010UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
