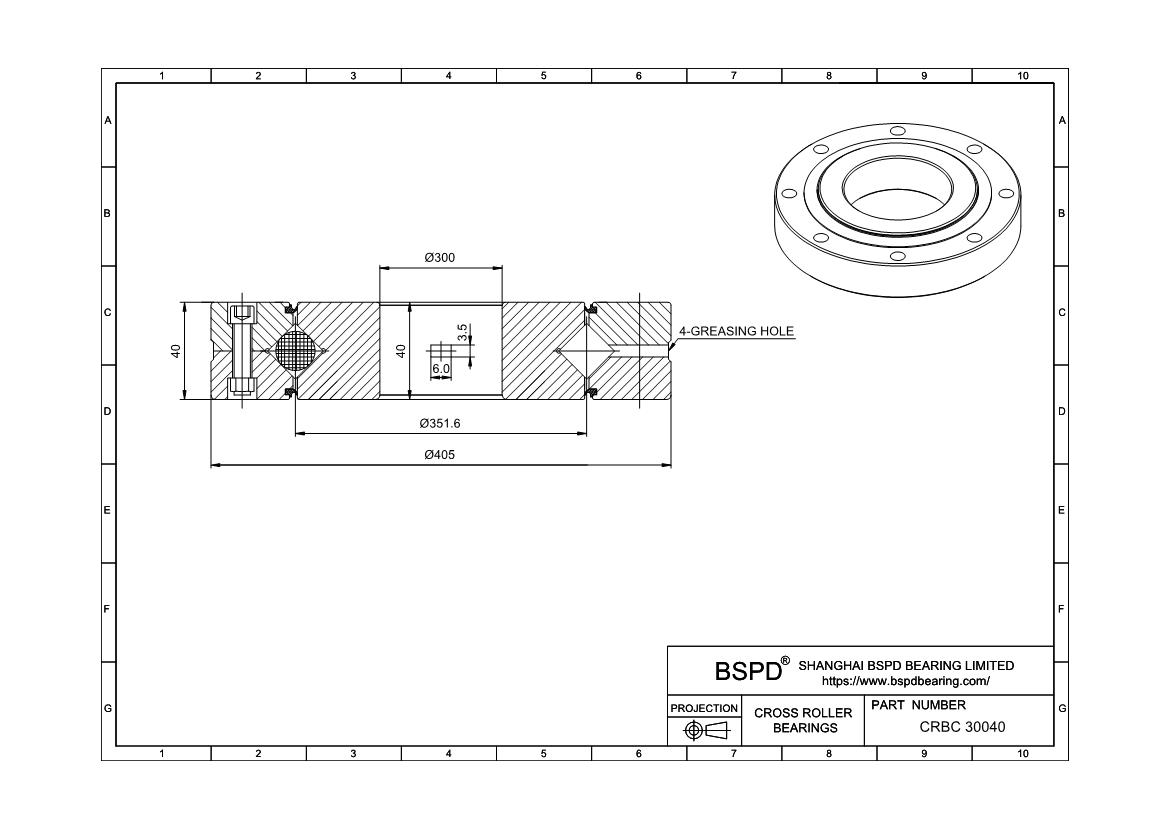

CRBC30040 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 405 mm； Width (Thickness): 40 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBC30040
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
Separator	With Cage
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	300
Mass(kg)	17.2
Bore Dia (d)	300
Outer Dia (D)	405
Width (B)	40
Greasing hole(d1)
r(min)	2.5
Shoulder height ds(max)	326
Shoulder height Dh(min)	377
Basic load rating (radial)C kN	212
Basic load rating (radial)Co kN	409

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
