CRBC30035
Crossed Roller TYPE

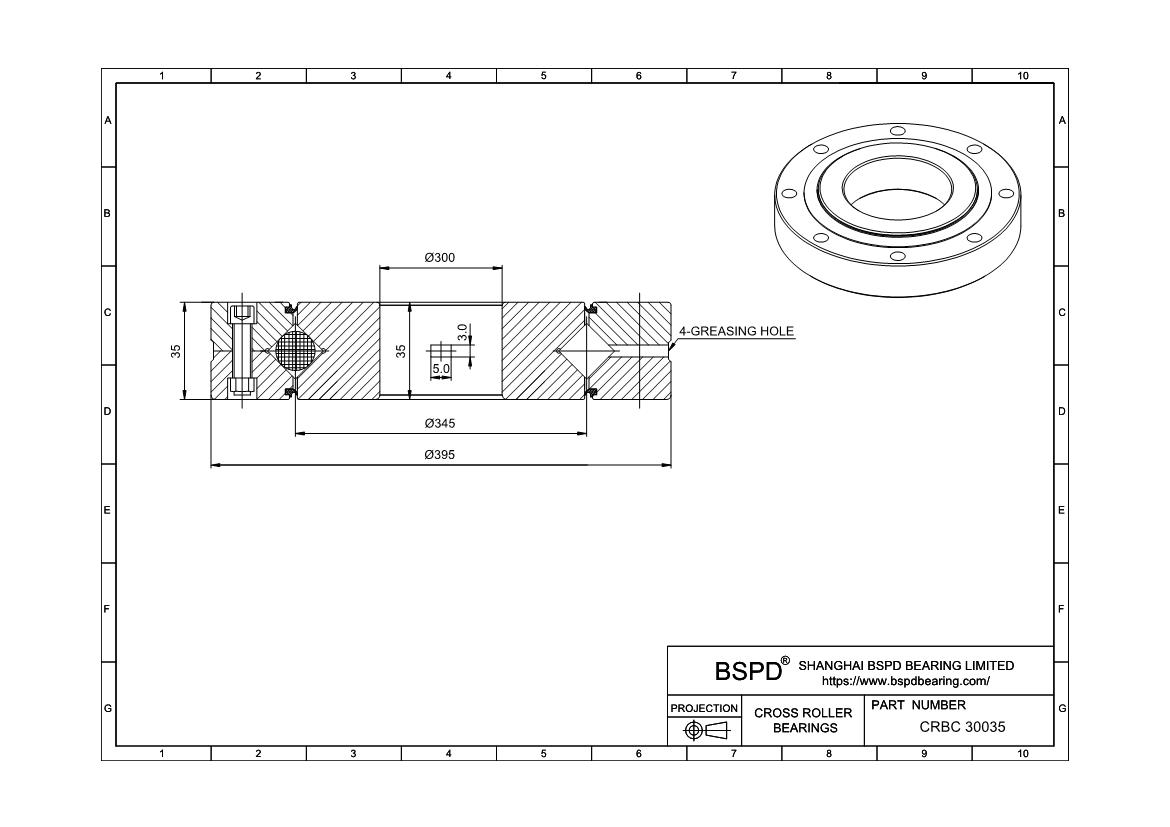

Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 395 mm； Width (Thickness): 35 mm;
REQUEST FOR QUOTE
Product Attributes
| IKO Part Number | CRBC30035 |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| Separator | With Cage |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 300 |
| Mass(kg) | 13.4 |
| Bore Dia (d) | 300 |
| Outer Dia (D) | 395 |
| Width (B) | 35 |
| Greasing hole(d1) | |
| r(min) | 2.5 |
| Shoulder height ds(max) | 322 |
| Shoulder height Dh(min) | 368 |
| Basic load rating (radial)C kN | 183 |
| Basic load rating (radial)Co kN | 367 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBC30035 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
