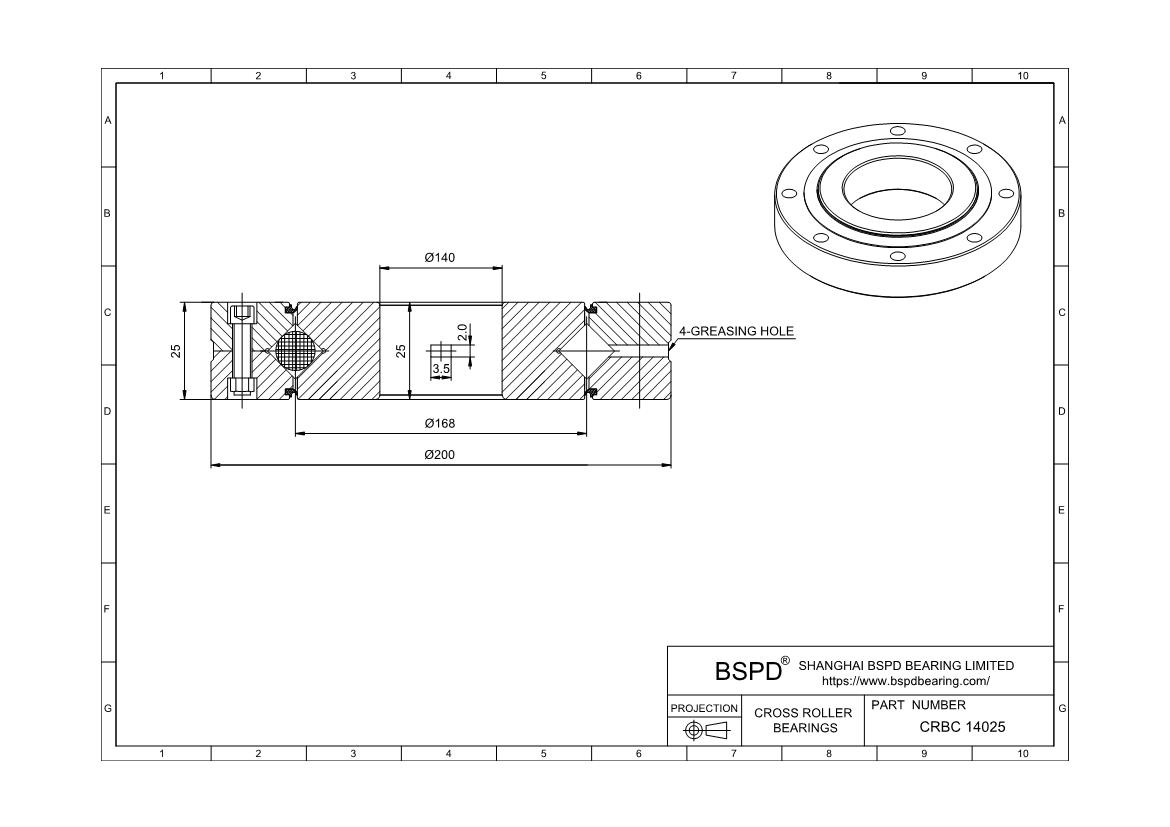

CRBC14025 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 200 mm； Width (Thickness): 25 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBC14025
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
Separator	With Cage
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	140
Mass(kg)	2.96
Bore Dia (d)	140
Outer Dia (D)	200
Width (B)	25
Greasing hole(d1)
r(min)	1.5
Shoulder height ds(max)	154
Shoulder height Dh(min)	185
Basic load rating (radial)C kN	74.8
Basic load rating (radial)Co kN	121
