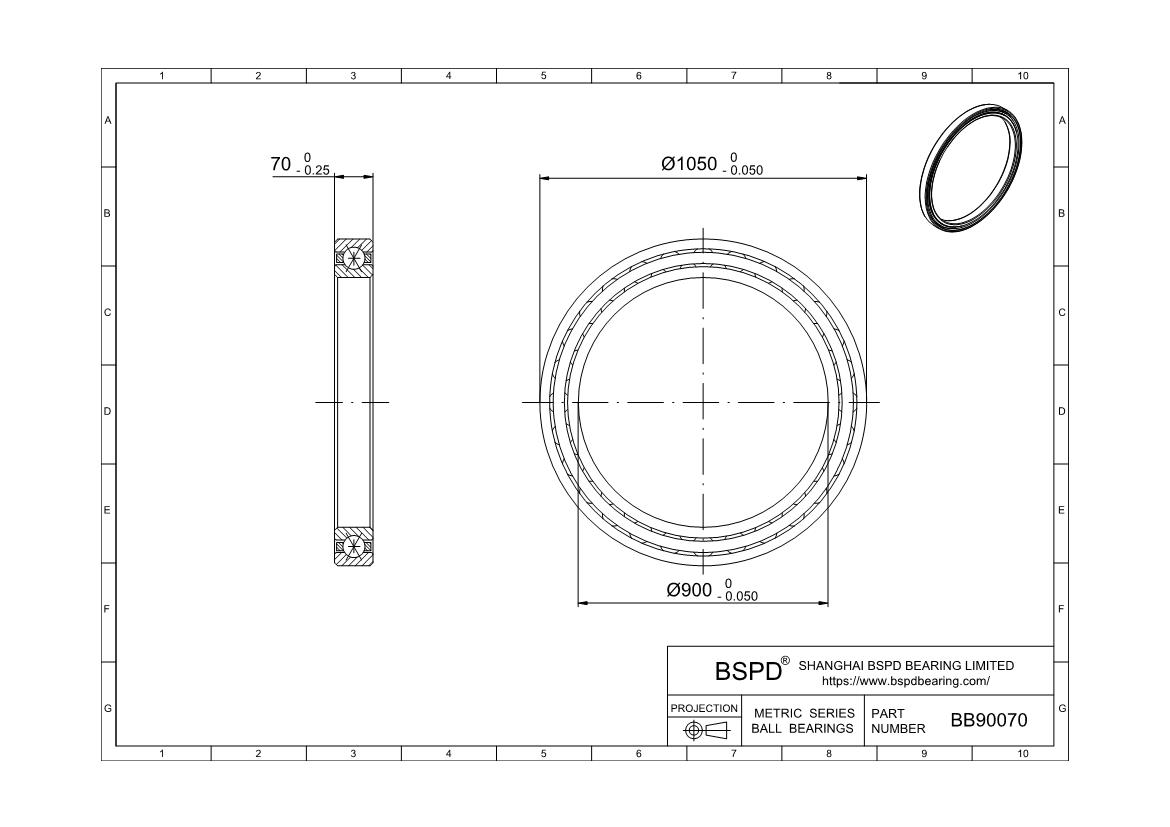

BB90070
BB Series Metric Ball Bearings
Dimensions: Bore (Inner) Diameter: 900 mm； Outer Diameter: 1050 mm； Width (Thickness): 70 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Part Number | BB90070 | |
| Kaydon Number | 39352001 | |
| Weight (kg) | 109.87 | |
| Bore Dia (d) | 900 | |
| Bore Dia Tolerance | -0.05 | |
| Outer Dia (D) | 1050 | |
| Outer Dia Tolerance | -0.05 | |
| Width (B) | 70 | |
| Width Tolerance | -0.25 | |
| R | 5 | |
| Dynamic (lbs) | Radial | 277597 |
| axial | 504827 | |
| Moment | 101535 | |
| Standard Diametral Clearance | 0.1-0.13 | |
| Radial and Axial Runout ?Inner | 0.050 | |
| Radial and Axial Runout Outer | 0.050 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings BB90070 ? BB Series Metric Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
